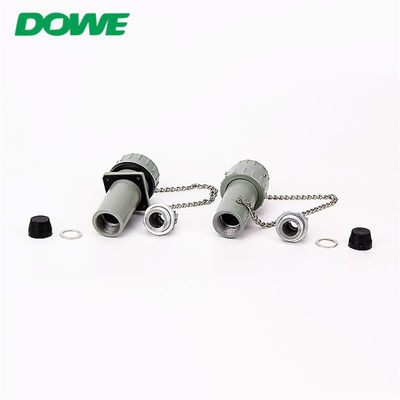

EX Certificate 100YT-5J Explosion-proof Non-sparking Plug

EX Certificate 100YT-5J Explosion-proof Non-sparking Plug
EX Certificate 100YT-5J Explosion-proof Non-sparking Plug EX Certificate 100YT-5J Explosion-proof Non-sparking Plug EX Certificate 100YT-5J Explosion-proof Non-sparking Plug EX Certificate 100YT-5J Explosion-proof Non-sparking Plug EX Certificate 100YT-5J Explosion-proof Non-sparking Plug EX Certificate 100YT-5J Explosion-proof Non-sparking Plug

Large Image :  EX Certificate 100YT-5J Explosion-proof Non-sparking Plug

Product Details:
Place of Origin: China(Mainland),Zhejiang
Brand Name: YOUTAI
Certification: ExdII
Model Number: 100YT-4J
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD5-69pcs
Packaging Details: Packing:2pcs/box,30pcs/carton Shippping:sample by express cargo by sea Delivery:according the quantity.
Delivery Time: 5days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per week

EX Certificate 100YT-5J Explosion-proof Non-sparking Plug

Description
Product Name: 3phase 5wire Plug Material: Aluminum Body And Silver Core
Weight: 1.KG Application: Oil,ex-proof,petrochemical Industry,marine
Color: Grey Certification: ExdII
Protection Level: IP54 Warranty: 12month

EX Certificate 100YT-5J Explosion proof Non-sparking Plug

Product Description




Product Name Explosion proof plug
Grounding Yes
Model 100YT-5J
Material Aluminum body and silver core
Color Grey
Weight 1.5KG
Warranty 12month
Application Oil,ex-proof,petrochemical industry,marine
Certification ExdII
Protection level IP54
Place of Origin China

YTGZ-4 EXPLOSION PROOF PLUG.png15YT-4 EXPLOSION PROOF CONNECTOR.jpg





15A~200A YT/GZ,YZ series non-spark electric connector is suitable for petroleum exploration,borehole electric control and other electrical continuity,which comply with the relevant regulations is National Standard GB3836.8-2003 & the provision of Europe Standard EN60079-15:2005 “Electrical Apparatus for Explosive Gas Atmosphere Part 8: Type of Protection'n'''.Explosion-proof sign is ExnAII T4,EExnA II T4.

The electric connector consists of two parts:Plug&Socket, of which the plug is mobile(YT).Three kinds of options are made available in the sockets,namely,1 fixed socket(GZ),2 mobile plug(YZ),3 title-type fixed socket(XGZ).Coupling way of the plug and socket is soiral bayonet snap coupling.End connection form between the contacts and wires is crimping.The contacts use elastic rin to support positioning and re the structure of installing from the rear and removing from the front.ZL-102 die-casting alloy is applied in the connector assembly,the contact element is plated with silver,which ensured reliable contact,convenient wiring,better air tightness & insulation,together with such features are waterproof,dust prevention,shockproof,etc.

Technical data:
Working voltage:AC220V,AC400V
Working current:15A,30A,60A,100A,150A,200A,300A
Life:1000times
Contact resistance:0.0008Ω
Insulation resistance:100MΩ
Insulation dielectric strength:2000V(220V),2500V(400V)
Protection degree:IP54

Single phase three wireconnector:YT/GZ-15A/25A/60A
Three phase four wire connector:YT/GZ-15A/25A/60A/100A/150A/200A/300A
Three phase four wire connector :YT/GZ-15A/25A/60A/100A/150A/200A/300A

Application

Application of ex-proof connector.jpg

Production process

Production process Production process.jpg
