RTS ATEX Three Phase Four Wire Explosion Proof Plug Socket BJ-15YT/GZ-4 Non-sparking Connector

    • RTS ATEX Three Phase Four Wire Explosion Proof Plug Socket BJ-15YT/GZ-4 Non-sparking  Connector
    • RTS ATEX Three Phase Four Wire Explosion Proof Plug Socket BJ-15YT/GZ-4 Non-sparking  Connector
    • RTS ATEX Three Phase Four Wire Explosion Proof Plug Socket BJ-15YT/GZ-4 Non-sparking  Connector
    • RTS ATEX Three Phase Four Wire Explosion Proof Plug Socket BJ-15YT/GZ-4 Non-sparking  Connector
  • RTS ATEX Three Phase Four Wire Explosion Proof Plug Socket BJ-15YT/GZ-4 Non-sparking  Connector

    Product Details:

    Place of Origin: China
    Brand Name: DOWE
    Model Number: BJ-15YT/GZ-4

    Payment & Shipping Terms:

    Minimum Order Quantity: 1set
    Price: USD12.9/SET
    Packaging Details: 21CMX15CMX10CM
    Payment Terms: T/T
    Supply Ability: 1000SET/WEEK
    Contact Now
    Detailed Product Description

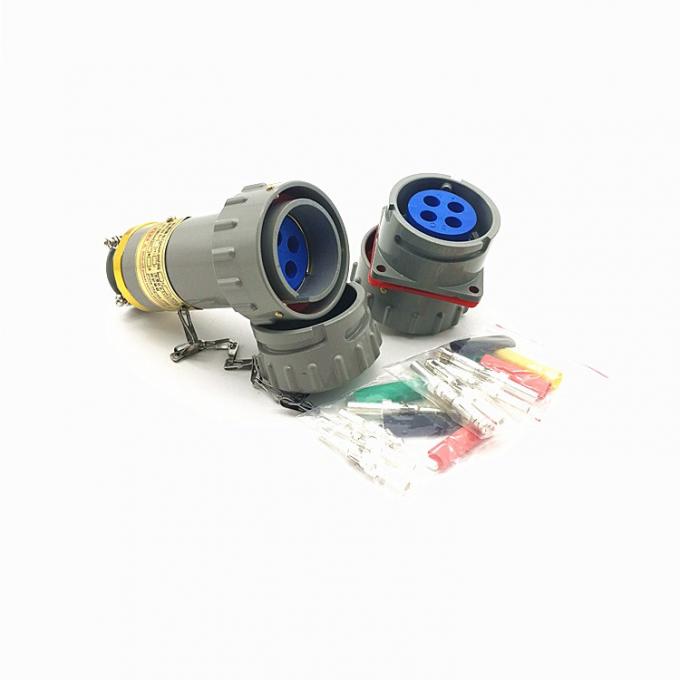

    BJ-15YT/GZ-4 Three Phase Four Wire Explosion Proof Plug Socket

    Product Description



    Product Name Explosion Proof Plug Socket
    Grounding Yes
    Phase Three Phase Four Wire
    Model BJ-15YT/GZ-4
    Material Aluminum body and silver core
    Color Grey
    Weight 0.42KG
    Warranty 12month
    Application Oil,ex-proof,petrochemical industry,marine
    Certification ExdII
    Protection level IP54
    Place of Origin China

    15A explosion proof plug socket.jpgYTGZ-4 non-sparking plug socket.pngexplosion proof plug socket connector.jpg

    15A~200A YT/GZ,YZ series non-spark electric connector is suitable for petroleum exploration,borehole electric control and other electrical continuity,which comply with the relevant regulations is National Standard GB3836.8-2003 & the provision of Europe Standard EN60079-15:2005 “Electrical Apparatus for Explosive Gas Atmosphere Part 8: Type of Protection'n'''.Explosion-proof sign is ExnAII T4,EExnA II T4.

    The electric connector consists of two parts:Plug&Socket, of which the plug is mobile(YT).Three kinds of options are made available in the sockets,namely,1 fixed socket(GZ),2 mobile plug(YZ),3 title-type fixed socket(XGZ).Coupling way of the plug and socket is soiral bayonet snap coupling.End connection form between the contacts and wires is crimping.The contacts use elastic rin to support positioning and re the structure of installing from the rear and removing from the front.ZL-102 die-casting alloy is applied in the connector assembly,the contact element is plated with silver,which ensured reliable contact,convenient wiring,better air tightness & insulation,together with such features are waterproof,dust prevention,shockproof,etc.

    Technical data:
    Working voltage:AC220V,AC400V
    Working current:15A,30A,60A,100A,150A,200A,300A
    Life:1000times
    Contact resistance:0.0008Ω
    Insulation resistance:100MΩ
    Insulation dielectric strength:2000V(220V),2500V(400V)
    Protection degree:IP54

    Single phase three wireconnector:YT/GZ-15A/25A/60A
    Three phase four wire connector:YT/GZ-15A/25A/60A/100A/150A/200A/300A
    Three phase four wire connector :YT/GZ-15A/25A/60A/100A/150A/200A/300A

    Application

    YT GZ plug socket.jpg

    Production process

    ex-proof plug socket.jpg

    Packaging & Shipping

    YT GZ plug socket.jpg
