M10 drum busbar insulator SM60 support insulator 12KV BMC red insulator

M10 drum busbar insulator SM60 support insulator 12KV BMC red insulator

    • M10 drum busbar insulator SM60 support insulator 12KV BMC red insulator
    • M10 drum busbar insulator SM60 support insulator 12KV BMC red insulator
  • M10 drum busbar insulator SM60 support insulator 12KV BMC red insulator

    Product Details:

    Place of Origin: China
    Brand Name: DOWE
    Certification: CE ROHS UL
    Model Number: SM51

    Payment & Shipping Terms:

    Minimum Order Quantity: 3000
    Price: $0.73
    Packaging Details: CARTON
    Delivery Time: 7DAYS
    Payment Terms: T/T,L/C,western union
    Supply Ability: 50000PCS/30DAYS
    Contact Now
    Detailed Product Description

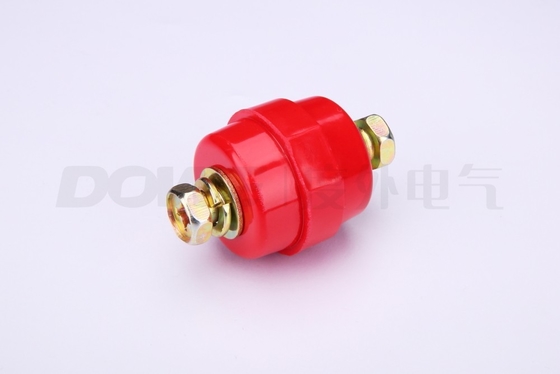

    SM60 BMC DRUM BUSBAR INSULATOR

    M10 drum busbar insulator SM60 support insulator 12KV BMC red insulator

    M10 drum busbar insulator SM60 support insulator 12KV BMC red insulator

    We are specialize in insulator for more than 7 years

    Best quality

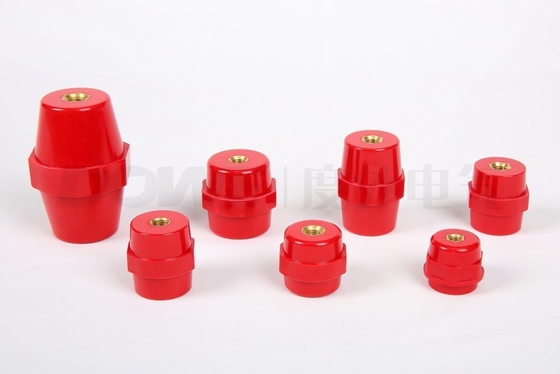

    Heigh: 20mm-----80mm

    Material:DMC,BMC,SMC

    Insert:brass,steel Zn coating,round/quadrilateral

    CE certificate,Rohs certifiacate

     Packing: carton

    SM-25S (LBS): 400,(FT LBS):5 Voltage(KV):6,Screw(mm):6,Weight(G):28

    SM-30 (LBS): 550,(FT LBS):8 Voltage(KV):8,Screw(mm):6/8,Weight(G):44

    SM-35 (LBS): 600,(FT LBS):10 Voltage(KV):10,Screw(mm):6/8,Weight(G):50

    SM-40 (LBS): 650,(FT LBS):10 Voltage(KV):12,Screw(mm):6/8,Weight(G):86

    SM-45 (LBS): 1000 ,(FTLBS):20, Voltage(KV):15 Screw(mm):8/10,Weight(G):70

    SM-51 (LBS): 1000, (FT LBS):20, Voltage(KV):15 Screw(mm):8/10,Weight(G):83

    SM-60 (LBS):500 (FT LBS):40 Voltage(KV):25,Screw(mm):10/12, Weight(G):170

    SM-76 (LBS): 1500 (FT LBS):40 Voltage(KV):25,Screw(mm):10/12,Weight(G):233

    THREE CLASS FOR YOUR CHOOSING!

    MORE INFORMATION ,PLEASE FEEL FREE TO CONTACT WITH US:

    Contact:Hellen

    Mail:hellenhua@busbarinsulator.com

    Web:www.dowechina.cc

    Tel:86-577-61716867

    Fax:86-577-61716150

    THANKS!
