|Product Name:||3phase 4wire Plug||Material:||Aluminum Body And Silver Core|
explosion proof power socket 1.5KG,
explosion proof power socket plug,
ex proof power plug
|Product Name||Explosion proof plug|
|Material||Aluminum body and silver core|
|Place of Origin||China|
15A~200A YT/GZ,YZ series non-spark electric connector is suitable for petroleum exploration,borehole electric control and other electrical continuity,which comply with the relevant regulations is National Standard GB3836.8-2003 & the provision of Europe Standard EN60079-15:2005 “Electrical Apparatus for Explosive Gas Atmosphere Part 8: Type of Protection'n'''.Explosion-proof sign is ExnAII T4,EExnA II T4.

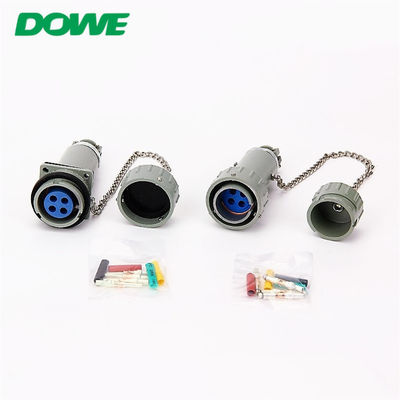

The electric connector consists of two parts:Plug&Socket, of which the plug is mobile(YT).Three kinds of options are made available in the sockets,namely,1 fixed socket(GZ),2 mobile plug(YZ),3 title-type fixed socket(XGZ).Coupling way of the plug and socket is soiral bayonet snap coupling.End connection form between the contacts and wires is crimping.The contacts use elastic rin to support positioning and re the structure of installing from the rear and removing from the front.ZL-102 die-casting alloy is applied in the connector assembly,the contact element is plated with silver,which ensured reliable contact,convenient wiring,better air tightness & insulation,together with such features are waterproof,dust prevention,shockproof,etc.
Insulation dielectric strength:2000V(220V),2500V(400V)
Single phase three wireconnector:YT/GZ-15A/25A/60A
Three phase four wire connector:YT/GZ-15A/25A/60A/100A/150A/200A/300A
Three phase four wire connector :YT/GZ-15A/25A/60A/100A/150A/200A/300A
