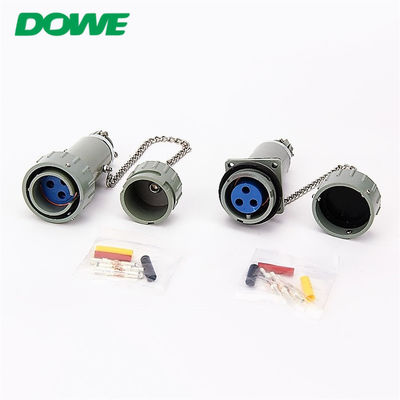

BJ-16YT-11/GZ YZ-11Waterproof Non-Sparking Type Multi Pin Plug Socket

This type of connector is suitable for electric locomotive,ship control,oil exploration,drilling control and power transmission system.

The front end is provided with a sealing cap socket,the plug is fully enclosed,connection type for spiral bayonet type fast connection,contact with the wire termination form cold pressure welding.

Good sealing performance,good insulation,reliable contact,impact and shock resistant,simple operation and etc..

The electric connector consists of two parts:Plug&Socket, of which the plug is mobile(YT).Three kinds of options are made available in the sockets,namely,1 fixed socket(GZ),2 mobile plug(YZ),3 title-type fixed socket(XGZ).Coupling way of the plug and socket is soiral bayonet snap coupling.End connection form between the contacts and wires is crimping.The contacts use elastic rin to support positioning and re the structure of installing from the rear and removing from the front.ZL-102 die-casting alloy is applied in the connector assembly,the contact element is plated with silver,which ensured reliable contact,convenient wiring,better air tightness & insulation,together with such features are waterproof,dust prevention,shockproof,etc.

Technical data:
Working voltage:500VAC
Working current:15A,25A
Life:500times
Insulation resistance:≥100MΩ
Protection degree:IP54
