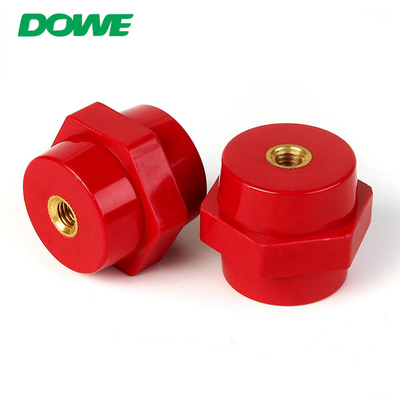

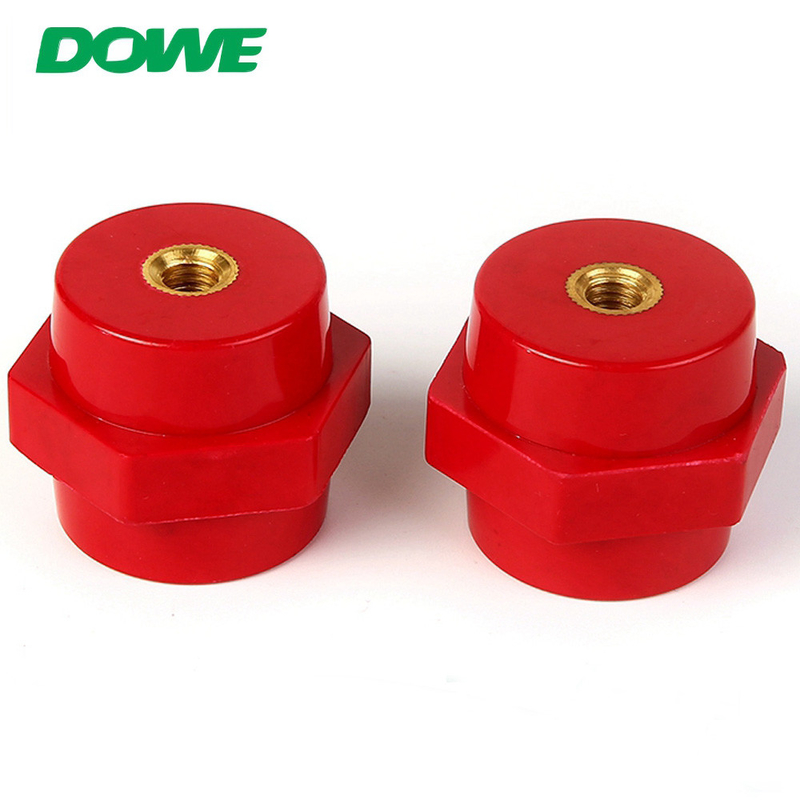

DMC BMC Low Tension Insulator 32x35 Hexagonal

DMC BMC Low Tension Insulator 32x35 Hexagonal
DMC BMC Low Tension Insulator 32x35 Hexagonal
DMC BMC Low Tension Insulator 32x35 Hexagonal DMC BMC Low Tension Insulator 32x35 Hexagonal DMC BMC Low Tension Insulator 32x35 Hexagonal DMC BMC Low Tension Insulator 32x35 Hexagonal

Large Image :  DMC BMC Low Tension Insulator 32x35 Hexagonal

Product Details:
Place of Origin: China(Mainland),Zhejiang
Brand Name: DOWE
Certification: CE ROHS UL
Model Number: SEP3532
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: USD0.3-0.99pcs
Packaging Details: inner box with carton
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000pcs per day

DMC BMC Low Tension Insulator 32x35 Hexagonal

Description
Product Name: Hexagonal Insulator Color: Red
Insert: Brass,steel Material: DMC/SMC
Size: 32*35 Certification: CE ROHS UL
Sample: 500g Freely Supplied
High Light:

DMC BMC Low Tension Insulator

,

Low Tension Insulator 32x35

,

hexagonal isolator

Busbar SEP series hexagonal low voltage burbar insulator popular in European

Product Description



Product Name Hexagonal insulator
Brand DOWE
Model SEP3532
Material DMC/BMC
Type Hexagonal type
Dimension 35*32
Color Customized
Sample Free
Torgue Strength ≥25N/M
Rated Voltage 660V
Application Electrical application
Certification CE,ROHS,UL for material
Operating Temperature 30℃~120℃
Place of Origin China

wind energy  busbar insulatorhexagonal insulator

Insulator is the special part to fix,install and insulat on communication, electric power, lightning protection, machinery, medical, wind energy, frequency conversion equipment,new energy vehicles (integrated chassis cabinets, locker, etc.) to provide meet the fixed support, installation and insulation isolation effect of special parts, it is also known as insulators, insulation column .Its appearance is usually the cylinder,hexagonal,round.There is the insert on the two surface of insulator.


Advantage:
1.High intensity
2.Electrical resistance
3.Heat, fire, water resistance
4.Low shrinkage

Production process

Insulator Production process.jpg

Application

Application: communication, electric power, lightning protection, machinery, medical, wind energy, frequency conversion equipment,new energy vehicles (integrated chassis cabinets, locker, etc.)


Packaging & Shipping

 Packaging & Shipping of insulator.jpg

Our Services

DOWE comes from "Do we could, Do well we could ". Based on it, DOWE will march forward steadily in international market with customers all over the world hand by hand! We make 100% of our efforts in technology research and line expansion for ground connection and zero connection.



Our Services

1. More than 10 years on Insulator and Copper Connector
2. Main products: Busbar Insulator,Busbar,Copper Connector
3. Supply the product with different class with different price
4. Supply the scheme design of ground connection and zero connection
5. Special requirement only for you,7days for samples.
6. CE,ROHS,material with UL

We cordially welcome customers from all over the world to contact us and develop our markets together. We guarantee superior quality, competitive prices, and best after-sale services.

FAQ

Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.But you have to pay the express cost.

Q: What’s delivery time?
A: It’s usually takes about 7 working days for small order and 15days for big order.

Q: What’s your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Westerm union,Cash.

Q: What’s your warranty terms?
A: We offer 18 months warranty terms.

Q: Do you have the products in stock?
A: Depends on your request,we have standard models in stock.Some special product and big order will be newly produced according to your order.

Q: Can I mixed different type in one container?
A: Yes,different models can be mixed up in one container,even one order.

Q: How does your factory do the quality control?
A: Quality is priority,we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.

Q: I would like to know if you have a partner for export?
A: Yes,DOWE have the right to export and can sell product all over the word.

Q: How can I trust you?
A: DOWE is honesty and loyalty.Our company has been audited and approved ISO9001,CE.Assessment report will could be sent to you by e-mail.Also we are Alibaba’s good supplier since 2006.Now we have clients all around the world.

Q: What do you have for certificate?
A: Our products are passed through IEC60947 and IEC60269 standarded.

Q: How to become the agents for DOWE?
A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest,let us discuss more !
