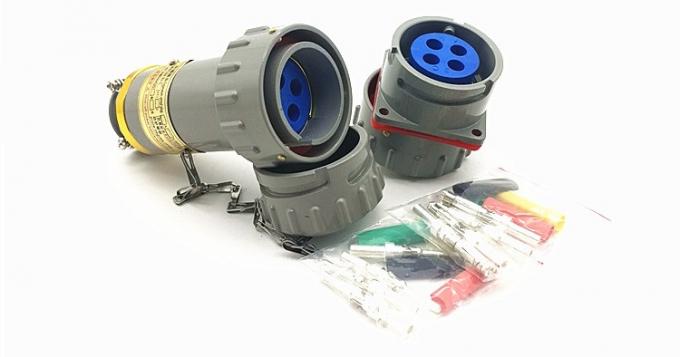

RTS ATEX Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking Connector

RTS ATEX  Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking  Connector
RTS ATEX  Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking  Connector RTS ATEX  Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking  Connector RTS ATEX  Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking  Connector RTS ATEX  Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking  Connector RTS ATEX  Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking  Connector RTS ATEX  Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking  Connector

Large Image :  RTS ATEX Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking Connector

Product Details:
Place of Origin: china
Brand Name: dowe
Model Number: BJ-60YT/GZ-4
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: usd21.2/set
Packaging Details: 25cmx15mx10cm
Payment Terms: T/T
Supply Ability: 1000set/week

RTS ATEX Explosion Proof Plug Socket BJ-60YT/GZ-4 Non-sparking Connector

Description

BJ-60YT/GZ-4 Three Phase Four Wire Explosion Proof Plug Socket

Product Description



Product Name Explosion Proof Plug Socket
Grounding Yes
Phase Three Phase Four Wire
Model BJ-60YT/GZ-4
Material Aluminum body and silver core
Color Grey
Weight 0.85KG
Warranty 12month
Application Oil,ex-proof,petrochemical industry,marine
Certification ExdII
Protection level IP54
Place of Origin China

non-sparking explosion proof plug socketYTGZ-4 non-sparking plug socket.pngexplosion proof plug socket connector.jpg

15A~200A YT/GZ,YZ series non-spark electric connector is suitable for petroleum exploration,borehole electric control and other electrical continuity,which comply with the relevant regulations is National Standard GB3836.8-2003 & the provision of Europe Standard EN60079-15:2005 “Electrical Apparatus for Explosive Gas Atmosphere Part 8: Type of Protection'n'''.Explosion-proof sign is ExnAII T4,EExnA II T4.

The electric connector consists of two parts:Plug&Socket, of which the plug is mobile(YT).Three kinds of options are made available in the sockets,namely,1 fixed socket(GZ),2 mobile plug(YZ),3 title-type fixed socket(XGZ).Coupling way of the plug and socket is soiral bayonet snap coupling.End connection form between the contacts and wires is crimping.The contacts use elastic rin to support positioning and re the structure of installing from the rear and removing from the front.ZL-102 die-casting alloy is applied in the connector assembly,the contact element is plated with silver,which ensured reliable contact,convenient wiring,better air tightness & insulation,together with such features are waterproof,dust prevention,shockproof,etc.

Technical data:
Working voltage:AC220V,AC400V
Working current:15A,30A,60A,100A,150A,200A,300A
Life:1000times
Contact resistance:0.0008Ω
Insulation resistance:100MΩ
Insulation dielectric strength:2000V(220V),2500V(400V)
Protection degree:IP54

Single phase three wireconnector:YT/GZ-15A/25A/60A
Three phase four wire connector:YT/GZ-15A/25A/60A/100A/150A/200A/300A
Three phase four wire connector :YT/GZ-15A/25A/60A/100A/150A/200A/300A

Application

YT GZ plug socket.jpg

Production process

ex-proof plug socket.jpg

Packaging & Shipping

YT GZ plug socket.jpg
