1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V

1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V
1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V 1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V 1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V 1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V

Large Image :  1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V

Product Details:
Place of Origin: China
Brand Name: DOWE
Certification: CCC,CE
Model Number: YZ-25A
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: $16.8-$112.5
Packaging Details: carton
Delivery Time: 7days
Payment Terms: T/T,L/C
Supply Ability: 10000PCS/30DAYS

1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V

Description

1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V



1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V 01phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V 1

1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V 2

1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V 3

1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V 4

1phase3wire ex-proof mobile socket YZ-25A cable socket electric socket 250V/400V 5



15A~200A YT/GZ,YZ series non-spark electric connector is suitable for petroleum exploration,borehole electric control and other electrical continuity,which comply with the relevant regulations is National Standard GB3836.8-2003 & the provision of Europe Standard EN60079-15:2005 “Electrical Apparatus for Explosive Gas Atmosphere Part 8: Type of Protection'n'''.Explosion-proof sign is ExnAII T4,EExnA II T4.The examination certificate number:EX8130617.

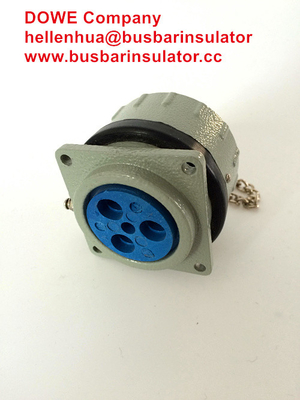

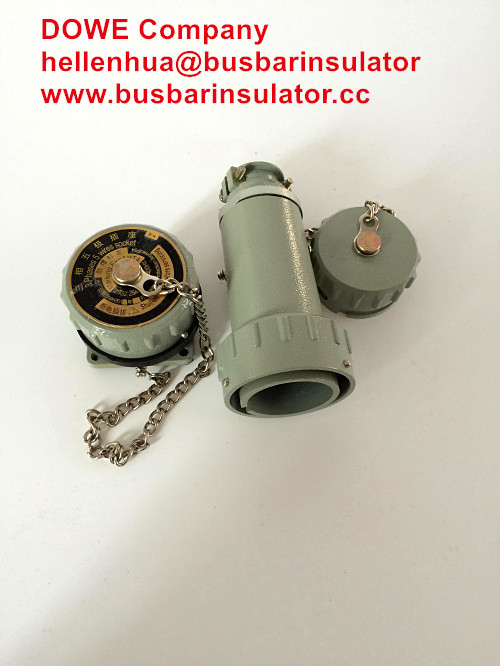

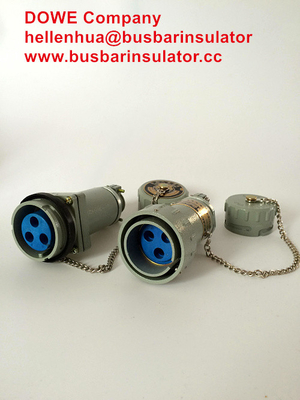

The electric connector consists of two parts:Plug&Socket, of which the plug is mobile(YT).Three kinds of options are made available in the sockets,namely,1 fixed socket(GZ),2 mobile plug(YZ),3 title-type fixed socket(XGZ).Coupling way of the plug and socket is soiral bayonet snap coupling.End connection form between the contacts and wires is crimping.The contacts use elastic rin to support positioning and re the structure of installing from the rear and removing from the front.ZL-102 die-casting alloy is applied in the connector assembly,the contact element is plated with silver,which ensured reliable contact,convenient wiring,better air tightness & insulation,together with such features are waterproof,dust prevention,shockproof,etc.

  1. Working voltage:AC220V,AC400V
  2. Working current:15A,30A,60A,100A,150A,200A,300A
  3. Life:1000times
  4. Contact resistance:0.0008Ω
  5. Insulation resistance:100MΩ
  6. Insulation dielectric strength:2000V(220V),2500V(400V)
  7. Protection degree:IP54



Single phase three wireconnector:YT/GZ-15A/25A/60A
Three phase four wire connector:YT/GZ-15A/25A/60A/100A/150A/200A/300A
Three phase four wire connector :YT/GZ-15A/25A/60A/100A/150A/200A/300A
