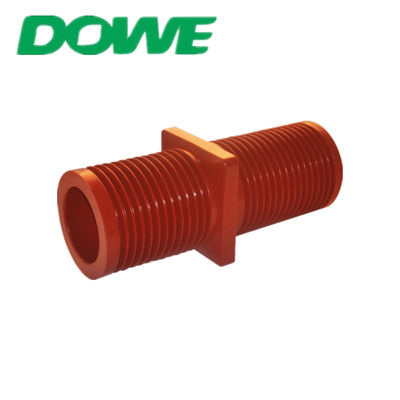

180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through

Certification
China Yueqing City DOWE Electric Co.,LTD certification
China Yueqing City DOWE Electric Co.,LTD certification
I'm Online Chat Now

180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through

180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through
180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through

Large Image :  180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through

Product Details:
Place of Origin: China
Brand Name: DOWE
Certification: CE ROHS UL
Model Number: TG1-35Q/180*180
Payment & Shipping Terms:
Minimum Order Quantity: any could
Price: depand on the exchang rate and quantity
Packaging Details: CARTON
Delivery Time: 7DAYS
Payment Terms: T/T,L/C,western union
Supply Ability: 20000PCS/30DAYS

180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through

Description
High Light:

35KV high voltage busbar bushing

,

busbar bushing epoxy resin

,

epoxy resin bushing



180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through

 180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 0

180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 1

High voltage standoff bushing description


The variety of high voltage wall bushing listed in sample all adopt epoxy vacuum pouring technology for one-time molding, kinds of bushing,contact box,insulating cylinder and bell housing etc adopt APG technology for molding. While ,some product adopt SMC,DMC un-saturatuon alkyd enlargement mode plastic for compacting molding. All the product are applied to3.6~40.5KV mid-large voltage switchboard.
For some product and specification size owning special requirement ,it could be designed and manufactured according to user
demand.


Application


Applicable to all shopping malls, supermarkets, national grids, substations, power energy, urban power and other fields.
Mainly used in switch cabinets, power stations, outdoor high voltage, switchgear,etc.



180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 2







Name Model Voltage Install data(mm) Height(mm) Brand
Epoxy resin bushing TG1-10Q/128(100X100) 12KV 100X100 250 DOWE
TG1-10Q/182(125X125) 125X125 235
TG2-10Q/210(152X152) 152X152 260
TG3-10Q/110X180 110X180 190
TG3-10Q/140X200 140X200 230
TG3-10Q/130X210 130X210 236
TG3-24Q/175X255X218 24KV 175X255 218
TG3-24Q/175X255X310 175X255 310
TG3-24Q/180X180X280 180X180 280
TG3-24Q/190X190X330 190X190 330
TG3-35Q/260X260X395 40.5KV 260X260 395
TG3-35Q/260X260X420 260X260 420
TG3-35Q/260X260X450 260X260 450
TG3-35Q/220X220X420 220X220 450
TG3-35Q/180X180X550 180X180 550



180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 3



















































180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 4180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 5180x180 Epoxy Resin Bushing 35KV High Voltage Busbar Bushing Epoxy Resin Through 6
