Product Details:
|
| Product Name: | MNS Busbar Insulator | Type: | MNS50X50 |
|---|---|---|---|
| Height: | 50 | Diameter: | 50 |
| Screw: | M8/m10/customized | Color: | Customized |
| MOQ: | 1 |
Application:
communication, electric power, lightning protection, machinery, medical, wind energy, frequency conversion equipment,new energy vehicles (integrated chassis cabinets, locker, etc.)
Operating Temperature:-40ºC~+140ºC

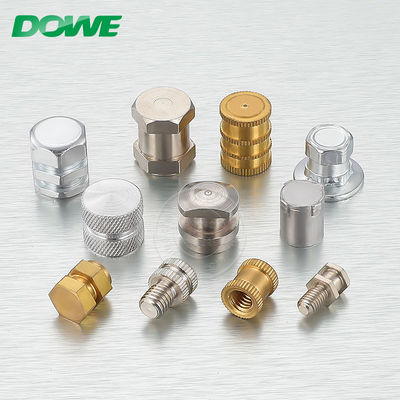

Insrt: Brass, steel with Zn coating
Material:BMC(Bough moulding compound)
SMC(Sheet moulding compound)
Color, insert, material performance, thread can be customized according to customer demand
Application: power distribution, power transmission equipment, fixed copper and aluminum busbar connection
Advantage:high intensity
electrical resistance
heat,fire,water resintance
low srinkage
| Model | Diameter | Height | Screw | Customized |
| MNS16X15 | 16 | 15 | 1/4,M6 | screw,color support to customized |
|
MNS16X20 |
16 | 20 | 1/4,M6 | |
| MNS16X25 | 16 | 25 | 1/4,M6 | |
| MNS16X30 | 16 | 30 | 1/4,M6 | |
| MNS16X35 | 16 | 35 | 1/4,M6 | |
| MNS16X40 | 16 | 40 | 1/4,M6 | |
| MNS20X20 | 20 | 20 | 1/4,M6 | |
| MNS20X25 | 20 | 25 | 1/4,M6 | |
| MNS20X30 | 20 | 30 | 1/4,M6 | |
| MNS20X35 | 20 | 35 | 1/4,M6 | |
| MNS20X40 | 20 | 40 | 1/4,M6 | |
| MNS20X45 | 20 | 45 | 1/4,M6 | |
| MNS20X50 | 20 | 50 | 1/4,M6 | |
| MNS25X25 | 25 | 25 | 1/4,M6 | |
| MNS25X30 | 25 | 30 | 1/4,M6 | |
| MNS25X35 | 25 | 35 | 1/4,M6 | |
| MNS25X40 | 25 | 40 | 1/4,M6 | |
| MNS25X45 | 25 | 45 | 1/4,M6 | |
| MNS25X50 | 25 | 50 | 1/4,M6 | |
| MNS25X60 | 25 | 60 | 1/4,M6 | |
| MNS30X30 | 30 | 30 | M6,M8 | |
| MNS30X40 | 30 | 40 | M6,M8 | |
| MNS30X50 | 30 | 50 | M6,M8 | |
| MNS30X60 | 30 | 60 | M6,M8 | |
| MNS30X100 | 30 | 100 | M6,M8 | |
| MNS40X30 | 40 | 30 | M6,M8,M10 | |
| MNS40X40 | 40 | 40 | M6,M8,M10 | |
| MNS40X50 | 40 | 50 | M6,M8,M10 | |
| MNS40X60 | 40 | 60 | M6,M8,M10 | |
| MNS40X70 | 40 | 70 | M6,M8,M10 | |
| MNS40X80 | 40 | 80 | M6,M8,M10 | |
| MNS50X40 | 50 | 40 | M6,M8,M10,M12 | |
| MNS50X50 | 50 | 50 | M6,M8,M10,M12 | |
| MNS50X60 | 50 | 60 | M6,M8,M10,M12 | |
| MNS50X70 | 50 | 70 | M6,M8,M10,M12 | |
| MNS50X80 | 50 | 80 | M6,M8,M10,M12 | |
| MNS60X40 | 60 | 40 | M6,M8,M10,M12 | |
| MNS60X50 | 60 | 50 | M6,M8,M10,M12 | |
| MNS60X60 | 60 | 60 | M6,M8,M10,M12 | |
| MNS60X70 | 60 | 70 | M6,M8,M10,M12 | |
| MNS60X80 | 60 | 80 | M6,M8,M10,M12 |
