Switchgear High Voltage Busbar Insulator Support 12 KV M12

Certification
China Yueqing City DOWE Electric Co.,LTD certification
China Yueqing City DOWE Electric Co.,LTD certification
I'm Online Chat Now

Switchgear High Voltage Busbar Insulator Support 12 KV M12

Switchgear High Voltage Busbar Insulator Support 12 KV M12
Switchgear High Voltage Busbar Insulator Support 12 KV M12
Switchgear High Voltage Busbar Insulator Support 12 KV M12 Switchgear High Voltage Busbar Insulator Support 12 KV M12 Switchgear High Voltage Busbar Insulator Support 12 KV M12 Switchgear High Voltage Busbar Insulator Support 12 KV M12 Switchgear High Voltage Busbar Insulator Support 12 KV M12 Switchgear High Voltage Busbar Insulator Support 12 KV M12

Large Image :  Switchgear High Voltage Busbar Insulator Support 12 KV M12

Product Details:
Place of Origin: CHINA
Brand Name: DOWE
Certification: CE,ROHS,SGS,REACH,ISO9000
Model Number: ZJ-12KV 65X130
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD1.49/PC-USD1.99
Packaging Details: CARTON
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000PCS/30DAYS

Switchgear High Voltage Busbar Insulator Support 12 KV M12

Description
Product Name: Epoxy Resin Insulator Material: Epoxy Resin
Certification: CE,ROHS,SGS,REACH,ISO9000 Model: ZJ-12KV 65X130/140/145
Voltage: 12KV Height: 130
Diameter: 65 Thread: M12
Key Words: High Voltage Insulator,composite Insulator, Busbar Insulator Application: High Voltage
Highlight:

Switchgear High Voltage Busbar Insulator

,

High Voltage Busbar Insulator support M12

,

m12 screw insulators

12KV High Voltage Epoxy Resin Insulator ZJ-12/65X130 Busbar Holder Insolators for Switchgear

Product Description
Switchgear High Voltage Busbar Insulator Support 12 KV M12 0

Epoxy Resin Insulator

DOWE is the China supplier for DMC/SMC/Epoxy resin insulator for low voltage and high voltage electrical application.
There are thoustands of busbar insulator and busbar clip,height from 16mm to 380mm,voltage is from 660V to 40.5KV according
IEC60439.Metric insulator and GB insulator according customizer’s necessary.

CE,SGS,ELV for insulator,UL for material.





Brand Name
DOWE
Model Number
ZJ-12/65X130
Application
High Voltage
Rated Voltage
12KV
Tensile Strength
8000N
Product Name
high voltage insulator
Material
Epoxy resin
Torgue strength(FT LBS)
20N
Color
customized

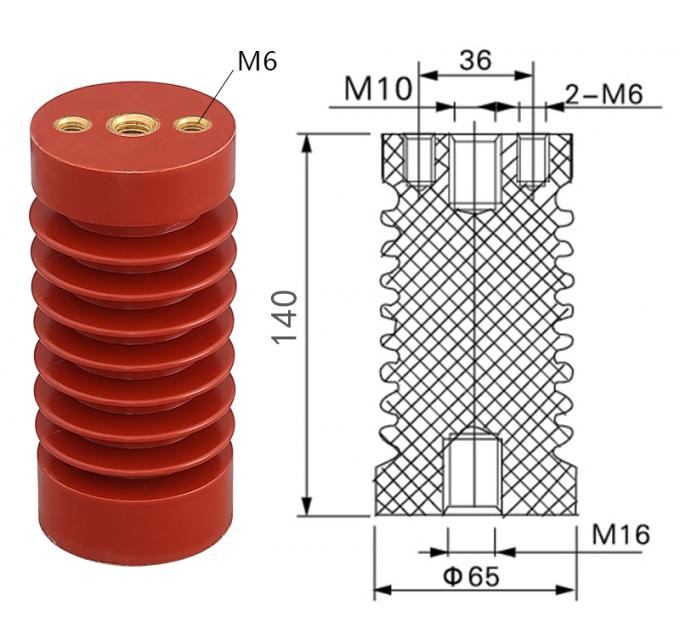

Switchgear High Voltage Busbar Insulator Support 12 KV M12 1

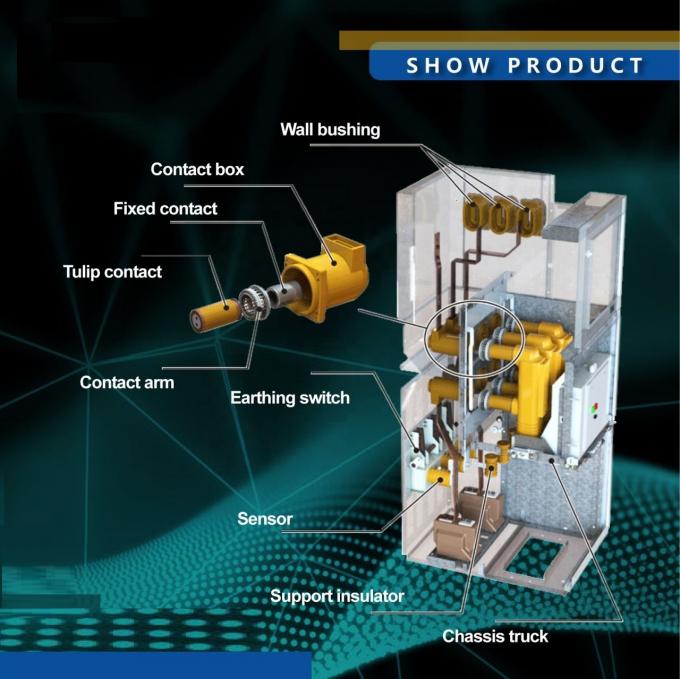

Switchgear High Voltage Busbar Insulator Support 12 KV M12 2
Switchgear High Voltage Busbar Insulator Support 12 KV M12 3Switchgear High Voltage Busbar Insulator Support 12 KV M12 4
Switchgear High Voltage Busbar Insulator Support 12 KV M12 5

Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.But you have to pay the express cost.
Q: What’s delivery time?
A: It’s usually takes about 7 working days for small order and 15days for big order.
Q: What’s your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Westerm union,Cash.
Q: What’s your warranty terms?
A: We offer 18 months warranty terms.
Q: Do you have the products in stock?
A: Depends on your request,we have standard models in stock.Some special product and big order will be newly produced according to your order.
Q: Can I mixed different type in one container?
A: Yes,different models can be mixed up in one container,even one order.
Q: What do you have for certificate?
A: Our products are approved ISO900000,CE,SGS,REACH,ROHS.
Q: How to become the agents for DOWE?
A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest,let us discuss more !
