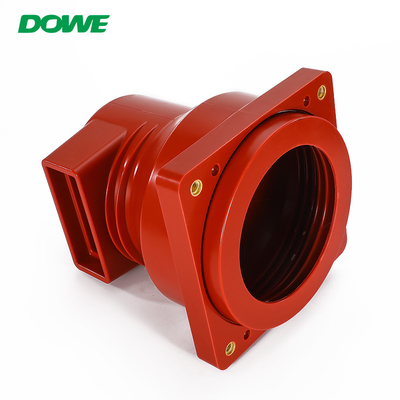

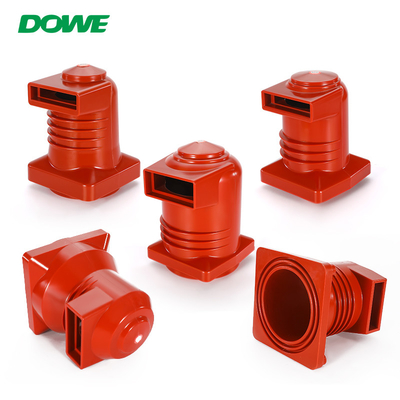

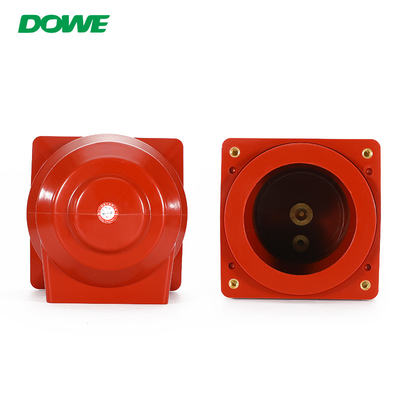

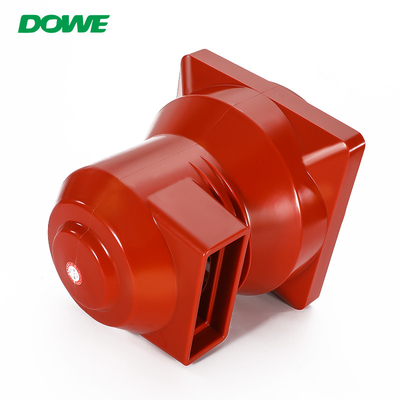

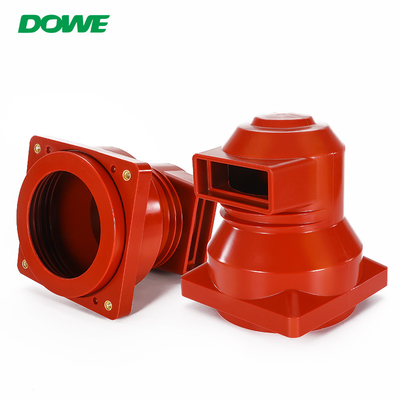

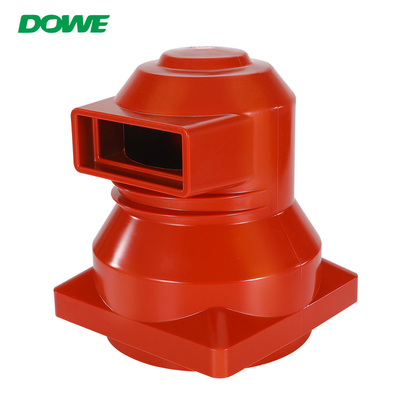

24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact

24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact
24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact
24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact 24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact 24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact 24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact 24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact 24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact 24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact

Large Image :  24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact

Product Details:
Place of Origin: China(Mainland),Zhejiang
Brand Name: DOWE
Certification: SGS CE REACH
Model Number: CH3-24Q 250 2000-2500A
Payment & Shipping Terms:
Minimum Order Quantity: 500pcs
Price: USD50.31/pcs
Packaging Details: 150PCS/CTN
Delivery Time: 5days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 8000pcs per week

24KV 250 2500A High Voltage Insulation Box Electrical Insulating Epoxy Resin Contact

Description
Product Namee: Contact Box Type: CH3-24Q 250 2000-2500A
Current: 2000-2500A Height: 375
Material: Epoxy Resin Technology: APG
Application: Low-high Voltage Cabinet Color: Support To Customize
High Light:

2500A High Voltage Insulation Box

,

24KV High Voltage Insulation Box

,

Insulating Epoxy Resin Contact Box

DUWAI 24KV 250 2000-2500A High Voltage Electrical Insulating Contact Box Epoxy Resin Contact Box

CH3-24Q/250 Middle Set Cabinet Contact Box Series
General description

1.The contact box is formed by epoxy with APG technies,it is used for insulation isolation and connection transition of various switch cabinet.
2. Altitude:≤1000m
3. Ambient temperature:+40ºC~10ºC
4. The relative humidity shall not be more than 95% at+20ºC ambient temperature.
5. NO gas ,wapor or dust that may severely affect the insulation of contact box,no explosive or corrosive substance.
6. The coper contact to earth shall withstand power frequency test voltage(effective value )of 42kv for 5 minutes and lightning impulse vpltage (peak value)of 75KV.
7. The temperature of lead-out terminal shall not bemore than 65ºC if the contact box is used for long time in rated current condition.
8. See the attached figure for the outline and installation dimension of contact box.







Product Name Contact box
Operating Temperature -40°C~+140°C
Type 12KV~40.5KV
Material EPOXY RESIN







Name Model Voltage Current(A) Install data(mm) Height(mm)
Contact box CH3-10Q/150 12KV 630-1250 120X120 250
CH3-10Q/150 630-1250 120X120 250
CH3-10Q/180 1250 140X140 250
CH3-10Q/190 1600 160X160 250
CH3-10Q/208 1600-2000 170X170 305
CH3-10Q/250 2500-3150 206X206 310
CH3-10Q/270 4000 230X230 300
CH3-24Q/225 24KV 630A-1600 165X200 340
CH3-24Q/250 2000A-2500 206X220 375
CH3-24Q/252 3150A-4000 220X206 375
CH3-35Q/660(II) 40.5KV     660
CH3-35Q/660(III)     660
CH3-35Q/606(II)     606

WB-35Q/184   540X579 540
WB-35Q/122   557X495 412
WB-35Q/80   540X577

80
