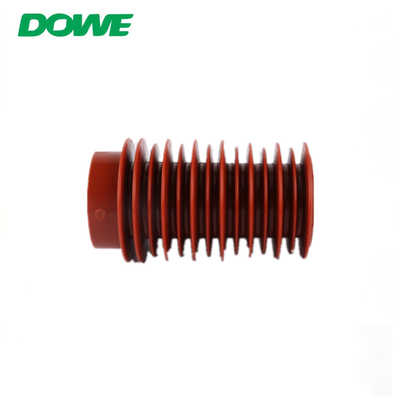

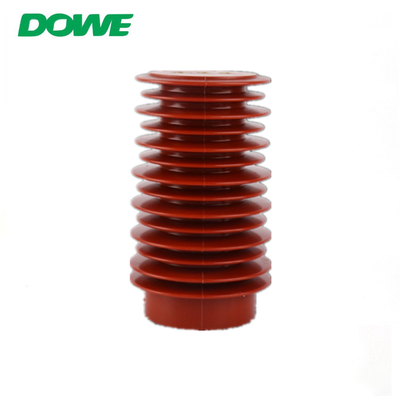

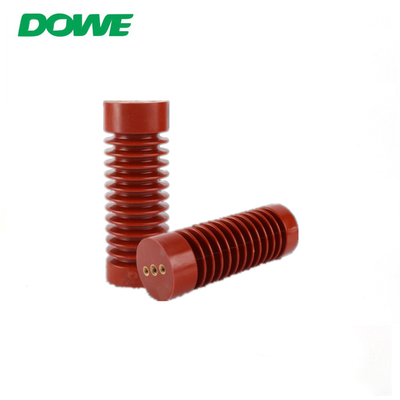

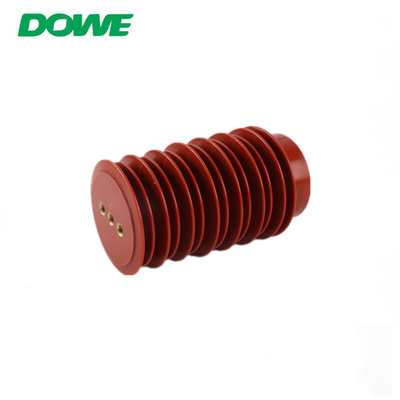

Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle

Certification
China Yueqing City DOWE Electric Co.,LTD certification
China Yueqing City DOWE Electric Co.,LTD certification
I'm Online Chat Now

Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle

Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle
Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle
Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle

Large Image :  Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle

Product Details:
Place of Origin: China
Brand Name: DOWE
Certification: SGS ROHS REACH CE
Model Number: ZJ-24Q/75x210
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD5.55-USD6.35
Packaging Details: carton
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle

Description
Product Name: High Voltage Standoff Insulator Model: ZJ-24Q
Height: 210mm Insert: Brass/steel
Customized: OEM Certificate: CE,ROHS,REACH
High Light:

Polyester high voltage standoff insulators

,

high voltage standoff insulators Switchgear

,

insulator polyester

Polyester Insulator 24KV Switchgear Epoxy Insulator



Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle 0


The variety of high voltage insulator listed in sample all adopt epoxy vacuum pouring technology for one-time molding, kinds of bushing,contact box,insulating cylinder and bell housing etc adopt APG technology for molding.



While ,some product adopt SMC,DMC
un-saturatuon alkyd enlargement mode plastic for compacting molding. All the product are applied to3.6~40.5KV mid-large volt
switchboard.


For some product and specification size owning special requirement ,it could be designed and manufactured according to user
demand.

Applicable to all shopping malls, supermarkets, national grids, substations, power energy, urban power and other fields.
Mainly used in switch cabinets, power stations, outdoor high voltage, switchgear,etc.



Polyester High Voltage Standoff Insulators Switchgear Electric Switch Cubicle 1



Name Model Voltage Diameter(mm) Height(mm) Brand
M.V Insulator EL-3M 70X60 3.6KV 70 60 DOWE
EL-6M 70X90 7.2KV 70 90
H.V Insulator ZJ-80X90 12KV 80 90
ZJ-65X130 65 130
ZJ-65X140 65 140
ZJ-70X142 70 142
ZJ-75X130 75 130
ZJ-85X140 85 140
ZJ-85X145 85 145
ZJ-85X150 85 150
ZJ-85X170 85 170
ZJ-100X130 100 130
ZJ-100X140 100 140
ZJ-70X210 24KV 70 210
ZJ-70X225 70 225
ZJ-75X210 75 210
ZJ-75X225 75 225
ZJ-110X190 110 190
ZJ-110X210 110 210
ZJ-110X225 110 225
ZJ-110X240 110 240
ZJ-130X340 40.5KV 130 340
ZJ-130X360 130 360
ZJ-130X380 130 380
ZJ-145X320 145 320
ZJ-145X340 145 340
ZJ-145X360 145 360
ZJ-145X380 145 380
