Product Details:
|
| Product Name: | TSM Insulator | Model: | TSM402 |
|---|---|---|---|
| Height: | 40mm | Diameter: | 30mm |
| Screw: | 500g Freely Supplied | Material: | DMC/SMC |
| Insert: | Brass/steel | Torque Stength: | >18N/m |
| Customized: | OEM/ | Certificate: | CE,ROHS,REACH |

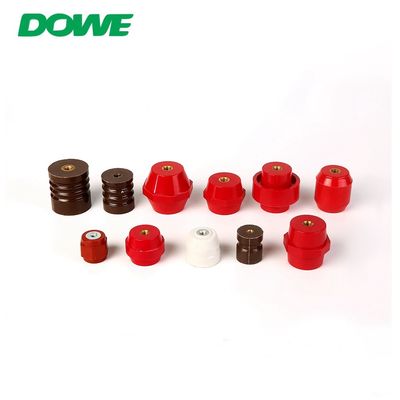

TSM busbar insulator is octagonal,made of DMC,used for low voltage application(660V-4500V),.
CE,SGS,ROHS certificate for octagonal insulator.
Material / Materiale:
-Thread Insert / Inserto Filettato :
Steel With Zn Coating Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperatura d’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0
All dimensions are in mm /Tutte le quote sono in mm
| Model | Diameter | Height | Screw |
| TSM20 | 17 | 20 | M5 |
| TSM30 | 30 | 30 | M6 |
| TSM402 | 30 | 40 | M6 |
| TSM401 | 40 | 40 | M8 |
| TSM40 | 50 | 40 | M10 |
| TSM50 | 55 | 50 | M10 |
| TSM55 | 60 | 55 | M10 |
| TSM70 | 50 | 70 | M10 |
