Product Details:
|
| Product Name: | TSM Insulator | Model: | SEP3541 |
|---|---|---|---|
| Height: | 35mm | Diameter: | 41mm |
| Screw: | 500g Freely Supplied | Material: | DMC/SMC |
| Insert: | Brass/steel | Torque Stength: | >18N/m |
| Customized: | OEM/ | Certificate: | CE,ROHS,REACH |

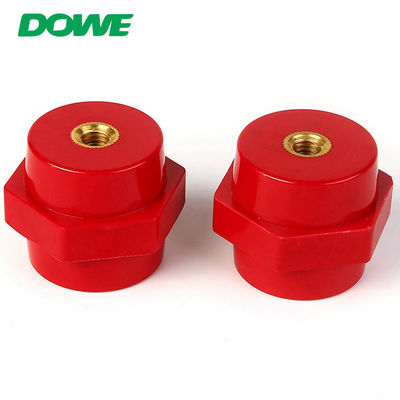

SEP Busbar Insulator
SEPbusbar insulator is hexagonal,ROHS,UL94 V0,made of DMC,used for low voltage application(660V-4500V),such as distribution
box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.
Material / Materiale:
-Thread Insert / Inserto Filettato:
Steel With Zn Coating
Brass
-DMC (Doug Moulding Compound)
-SMC (Sheet Moulding Compound)
Colour / Colore :Red
Working Temperature / Temperaturad’esercizio : 40℃～140℃
Flammability / Autoestinguenza:V0
All dimensions are in mm /Tutte le quote sono in mm
Please confirm screw when order busbar insulator.Accepting OEM.
