DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet

Certification
China Yueqing City DOWE Electric Co.,LTD certification
China Yueqing City DOWE Electric Co.,LTD certification
I'm Online Chat Now

DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet

DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet
DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet
DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet

Large Image :  DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet

Product Details:
Place of Origin: CHINA
Brand Name: DOWE
Certification: CE,SGS,REACH
Model Number: CG5-35Q/130X320
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD20.63-USD24.99/PC
Packaging Details: CARTON
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000PCS/30DAYS

DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet

Description
Product Nam: H.V Post Transducer Material: Epoxy Resin
Certification: CE ROHS Model: CG5-35Q/130X320

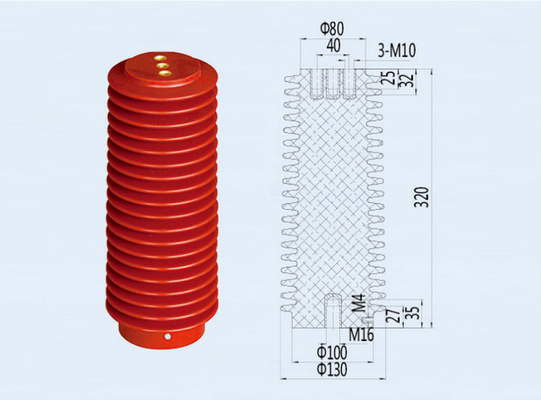

Height: 320mm Voltage: 35KV

   35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet



Products Description


DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet 0
High Voltage Device Sensor
The variety of high voltage insulator listed in sample all adopt epoxy vacuum pouring technology for one-time molding, kinds of
bushing,contact box,insulating cylinder and bell housing etc adopt APG technology for molding. While ,some product adopt SMC,DMC un-saturatuon alkyd enlargement mode plastic for compacting molding. All the product are applied to3.6~40.5KV mid-large volt switchboard. For some product and specification size owning special requirement ,it could be designed and manufactured according to user demand.







Product Description
Product Name 35KV/40.5KV Insulator Transducer
Brand DOWE
Model CG5-35Q/130X320
Material Epoxy resin
Color Standand is red,Customized acceptable
Rated Voltage 35kv

Application

High voltage
Certification CE,ROHS
Operating Temperature -30℃~120℃
Place of Origin China


DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet 1

DOWE 35KV High Voltage Epoxy ResinTransducer Sensor Display For Switchgear Electrical Cabinet 2

Name Model Voltage Diameter(mm) Height(mm) Brand
Transducer CG5-95x125 12KV 95 125 DOWE
CG-95X130 95 130
CG-95X140 95 140
CG-95X145 95 145
CG-100X140 100 140
CG-100X150 100 150
CG5-95X150 95 150
CG5-95X170 95 170
CG5-110X190 24KV 110 190
CG5-110X210 110 210
CG5-110X225 110 225
CG5-130X360 40.5KV 130 360
CG5-130X380 130 380
CG5-145X320 145 320
CG5-145X380 145 380



FAQ

Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.But you have to pay the express cost.
Q: What’s delivery time?
A: It’s usually takes about 7 working days for small order and 15days for big order.
Q: What’s your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Westerm union,Cash.
Q: What’s your warranty terms?
A: We offer 18 months warranty terms.
Q: Do you have the products in stock?
A: Depends on your request,we have standard models in stock.Some special product and big order will be newly produced according to your order.
Q: Can I mixed different type in one container?
A: Yes,different models can be mixed up in one container,even one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.
Q: I would like to know if you have a partner for export?
A: Yes,DOWE have the right to export and can sell product all over the word.
Q: How can I trust you?
A: DOWE is honesty and loyalty.Our company has been audited and approved ISO9001,CE.Assessment report will could be sent to you by e-mail.Also we are Alibaba’s good supplier since 2006.Now we have clients all around the world.
Q: What do you have for certificate?
A: Our products are passed through IEC60947 and IEC60269 standarded.
Q: How to become the agents for DOWE?
A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest,let us discuss more !
