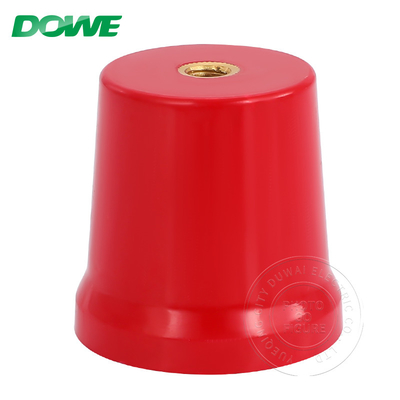

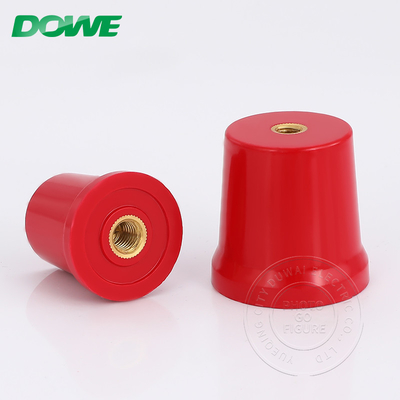

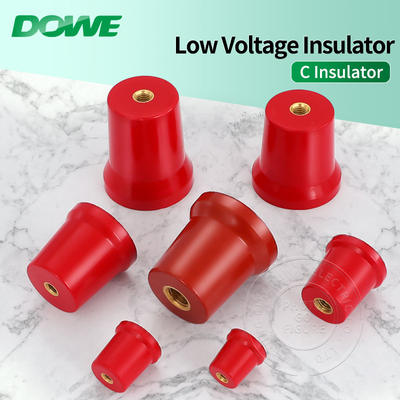

Product Details:
|
| Product Name: | C Busbar Insulator | Type: | C25 |
|---|---|---|---|
| Height: | 25 | Diameter: | 25 |
| Screw: | M6/m8/m10/customized | Color: | Customized |
| MOQ: | 1 | Material: | DMC |
| High Light: | C25 Low Voltage Insulator,C Conical Busbar Low Voltage Insulator,DMC Electrical Support Standoff Isolator |
||
Application:
communication, electric power, lightning protection, machinery, medical, wind energy, frequency conversion equipment,new energy vehicles (integrated chassis cabinets, locker, etc.)
Operating Temperature:-40ºC~+140ºC

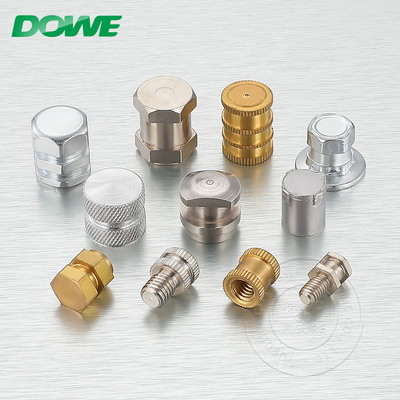

Insrt: Brass, steel with Zn coating
Material:BMC(Bough moulding compound)
SMC(Sheet moulding compound)
Color, insert, material performance, thread can be customized according to customer demand
Application: power distribution, power transmission equipment, fixed copper and aluminum busbar connection
| Model | Diameter | Height | Screw |
| C25 | 25 | 25 | M6 |
| C30 | 30 | 30 | M6/M8 |
| C40 | 40 | 40 | M6/M8 |
| C50 | 50 | 50 | M8/M10 |
| C60 | 60 | 60 | M10/M12 |
| C70 | 60 | 70 | M10/M12 |
