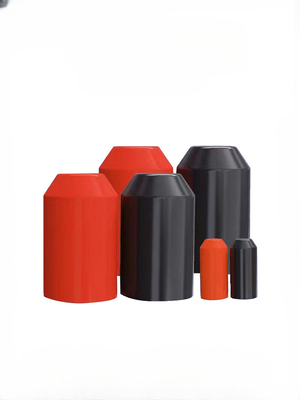

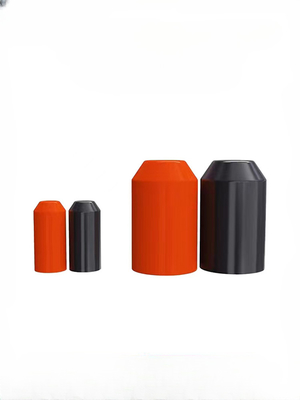

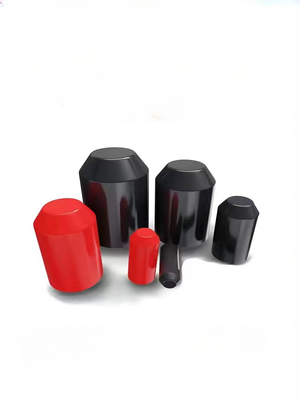

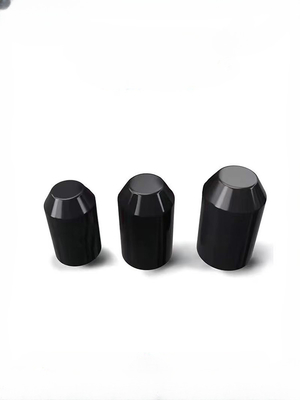

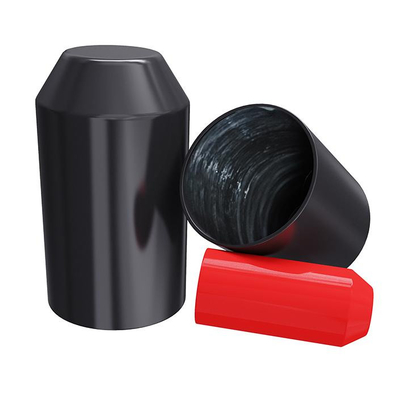

DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover

DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover
DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover

Large Image :  DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover

Product Details:
Place of Origin: China
Brand Name: DUWAI
Certification: ISO UL
Model Number: DWEC
Payment & Shipping Terms:
Minimum Order Quantity: 10/PCS/BAG
Price: USD0.05-1.9/METER
Packaging Details: CTN
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 METER per Day
Contact Now

DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover

Description

Products Description



PE black heat shrink wine caps

-Made of cross-linked polyolefin. -Hot melt adhesive lining provides permanent seal on irregular cable sheaths. -Excellent resistance to weathering, moisture, contamination and adverse environmental conditions. -RoHS compliant -Continuous operating temperature: -55℃~110℃ -Shrink temperature: 120℃ -Standard colors: black

DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover 0
DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover 1
DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover 2
DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover 3
DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover 4
DUWAI PE black red green yellow heat shrink cable end cap Cable connector protective cover 5
Specifications(All dimensions are in mm)
Standard Lenght
(diameter*lenght)
Extended Lenght
(diameter*lenght)
Overlenght
(diameter*lenght)
Diameter range of applicable cable
8*25


5-7
10*30


6-9
13*30
13*50

7-11
15*40
15*60
15*100
8-13
18*40
18*60
18*100
11-15
20*40
20*60
20*100
12-17
23*40
23*60
23*100
15-17
25*40
25*60
25*100
16-22
28*40
28*60

17-25
30*40
30*60
30*90
18-27
32*50
32*60

19-28
35*50
35*60
35*90
22-30
40*60
40*80
40*100
25-35
45*60
45*80
45*100
28-40
50*70
50*100

35-45
55*70
55*100

38-50
60*70
60*80
60*100
40-55
65*80
65*100

43-60
70*90
70*120
70*170
45-65
75*90
75*120
75*170
50-70
80*90
80*100
80*120
55-75
85*100
85*120

60-80
90*120


65-85
95*120
95*150

65-90
100*130

100*170
70-90
110*130

110*170
75-100
120*150


80-110
130*150


100-130
150*180


120-150
Specifications(All dimensions are in mm)
Sizes
Inside diameter
Length of coating(A)
Minimum expanded as supplied(D)
Maximum reecovered after heating(d)
DWEC-20/8
20
8
20
DWEC-40/15
40
15
30
DWEC-55/25
55
25
35
DWEC-75/30
75
30
50
DWEC-100/45
100
45
50
DWEC-140/65
140
65
60
Specifications(All dimensions are in mm)
Sizes
Inside diameter
Total lenght (L,±10%)
Recovered wall thickness after heating (L,±5%)
Diameter range of applicable cable
Minimum expanded as supplied(D)
Maximum recovered after heating(d)
DWEC-12/4
12
4
40
2.6
4-10
DWEC-14/5
14
5
45
2.2
5-12
DWEC-20/6
20
6
55
2.8
6-16
DWEC-25/8.5
25
8.5
68
2.8
8.5-20
DWEC-35/18
35
18
90
3.3
18-30
DWEC-40/20
40
20
90
3.3
20-35
DWEC-55/28
55
