Product Details:
|
| Model Number: | 80*8 | Customized: | OEM |
|---|---|---|---|
| Product Nam: | Modular Insulated Busbar Clamp | Brand Name: | DUWAI |
| Rated Current: | 3150A | Rated Voltage: | 10KV |
| Rated Insulation Voltage: | 1000V | Rated Frequency: | 50/60HZ |

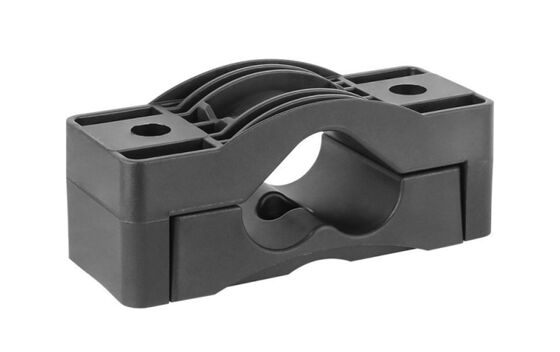

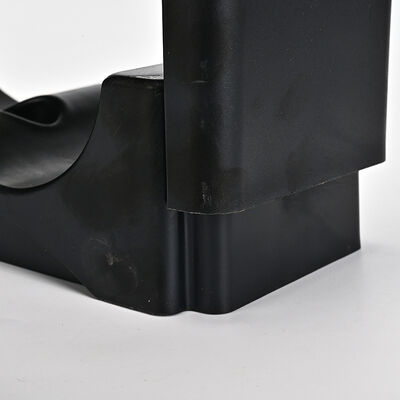

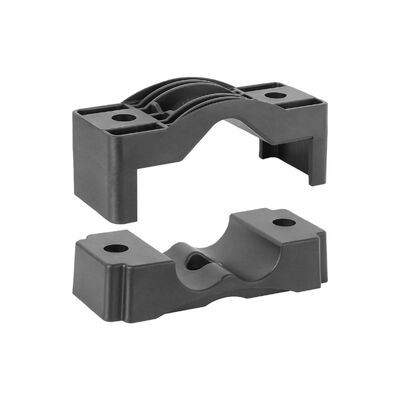

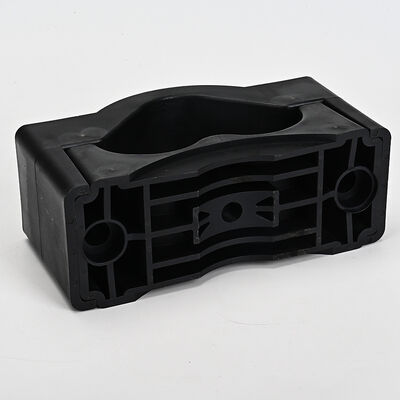

This modular clamp provides secure busbar insulation and fixation in three-phase power distribution systems. It is compatible with
GCK, GCS, MNS, and XL-type cabinet systems.
Manufactured from durable PA66, the component delivers superior mechanical and thermal performance. It is built to withstand
extreme electrical events, with ratings of 1000V Ui, 12kV Uimp, and 65kA Icw, ensuring full protection against overvoltages and
short-circuit forces for enhanced system safety.
Designed for three-phase busbar installation in GCK, GCS, MNS, and XL power cabinets, this modular insulated clamp guarantees
system safety and reliability. The high-strength PA66 construction and robust electrical ratings—1000V Ui, 12kV Uimp, and 65kA
Icw—provide critical protection against electrical faults, short circuits, and electrodynamic forces.
| Model Number | 80*8 |
| Material | Nylon |
| Customized | Yse |
| IP Level | IP Level |
| Rated Voltage | 10KV |
| Rated Insulation Voltage | Rated Insulation Voltage |
| Rated Operational Voltage | 400V |
| Rated Short-time Withstand Current | 65KV |
| Polyamide 66 (Nylon 66) | PA66 |
| Rated Insulation Voltage | 1000V |
| Rated Impulse Withstand Voltage | 12KV |
| Rated Frequency | 50/60HZ |
| Certificate | CE,SGS,ROHS |
| Single-row Busbar Frame Copper bar thickness/width | Caution | |
| Copper Busbar Thickness/H | Copper bar width/A |
1.For copper busbars requiring heat shrink, the width (H) defaults to an increase of 2mm. 2.Contact the Technical Department for custom busbar width or thickness dimensions. |
| 8mm | 80mm | |
| 10mm | 100mm | |
| 12mm | 120mm | |
| Single-row Busbar Frame Copper bar thickness/width | Caution | |
| Copper Busbar Thickness/H | Copper bar width/A |
1.For copper busbars requiring heat shrink, the width (H) defaults to an increase of 2mm. 2.Contact the Technical Department for custom busbar width or thickness dimensions. |
| 6mm | 80mm | |
| 8mm | 100mm | |
| 10mm | 120mm | |
| 12mm | ||
| Single-row Busbar Frame Copper bar thickness/width | Caution | |
| Copper Busbar Thickness/H | Copper bar width/A |
1.For copper busbars requiring heat shrink, the width (H) defaults to an increase of 2mm. 2.Contact the Technical Department for custom busbar width or thickness dimensions. |
| 10mm | 80mm | |
| 12mm | 100mm | |
| 120mm | ||
DOWE comes from "Do we could ,Do well we could ". Based on it, DOWE will march forward steadily in international market with customers all over the world hand by hand! We make 100% of our efforts in technology research and line expansion for related electrical equipment ,such as power meter, panel meter, fuse,H.V. electrical components and EX-connector etc.
-Professionalism
We make 100% of our efforts in technology research and line expansion for related electrical equipment ,such as power meter, panel meter, fuse,H.V. electrical components and EX-connector etc. With more than 10 years experiences, we have owned core technical knowledge and hundreds of standard products for customer's selection
-Product Quality
We always attached great importance to quality than to quantity. In Dowe, every product should obey a strict and complete procedure and standard from research, design, prototype, component selection, test production, mass production, to quality control. In administration affair, we have a high efficiency computerized management system from receiving orders at sales department to shipping to ensure our best service for our customers.
-Service
We realize electric products need to meet application requirement with customer's final equipment. "Customer Satisfaction" is a motivated power for Dowe future growth. We strongly believe you will satisfy our total services, no matter in attitude, respond time, information offer before sales, technical support, prompt delivery, after-sales services, and customer's quality claim issue.
Finally, we would like to appreciate the past supports from our worldwide customers to be today's Dowe. We expect to get your continuous support and can be your best and trustworthy partner forever.
Our company offers comprehensive Product Technical Support and Services for the Busbar Insulator. Our team of experts is available to provide assistance with installation, troubleshooting, and maintenance of the product.
Technical support includes guidance on proper usage, product specifications, and addressing any issues that may arise during operation. Our services also extend to training programs to ensure proper handling and care of the Busbar Insulator.
