Product Details:
Place of Origin: China
Brand Name: DOWE
Certification: CE ROHS
Model Number: 1600-3150A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: USD17.9-19.99/PC
Packaging Details: CARTON
Delivery Time: 7DAYS
Payment Terms: T/T,L/C,western union
Supply Ability: 200PCS/DAY

Electrical Switchgear HV Insulators Isoator Power Supply Epoxy 12KV

Description

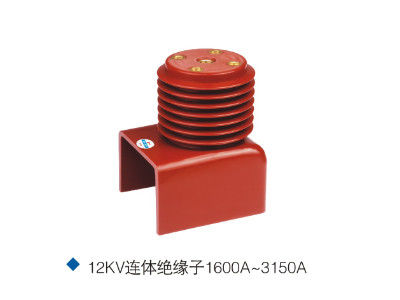

Name: Siamese Insulator Mateial: Epoxy Resin
Model: ZJ-10Q/1600A-3150A Application: High Voltage
Voltage: 10KV Measurement: 170x222mm
High Light:

Switchgear HV Insulators

,

HV Insulators Isoator

,

high voltage insulating epoxy



Epoxy Resin Support Insulator 1600A-3150A

Epoxy resin indoor post insulators can be used for all indoor applications. For tropical conditions same types (with special fixing parts) are available. They are suitable for temperatures from -25 °C up to +90 °C Construction Epoxy cast resin indoor post insulators are cylindrical solid insulators, with proper creepage and number of ripples. The main dimensions are in accordance with IEC 60273 - 1990. Auxiliary inserts are connected with main insert electrically.



Epoxy resin parts are made by advanced APG technology. By using advanced testing devices such as DSC analyzer, X-ray testing equipment, leakage tester and equipment for bending & tensile & pressing testing, the quality is under strict supervision and a stable quality is assured. Remark: most of our parts are customized parts. Please send your drawings for checking production feasibility and price.



            Electrical Switchgear HV Insulators Isoator Power Supply Epoxy   12KV 0

Electrical Switchgear HV Insulators Isoator Power Supply Epoxy   12KV 1

    Material:expoy resin

Insert:brass/steel

CE certificate,Rohs certifiacate,UL

We are specialize in electric insulator for more than 7 years

Best quality

Colour:OEM

Screw:M10,M12,M16

Heigh: 140mm/145mm

Packing: carton

Name Model



Voltage





Diameter(mm)



Height(mm) Brand
M.V Insulator EL-3M 70X60 3.6KV 70 60 DOWE
EL-6M 70X90 7.2KV 70 90
H.V Insulator ZJ-80X90 12KV 80 90
ZJ-65X130 65 130
ZJ-65X140 65 140
ZJ-70X142 70 142
ZJ-75X130 75 130
ZJ-85X140 85 140
ZJ-85X145 85 145
ZJ-85X150 85 150
ZJ-85X170 85 170
ZJ-100X130 100 130
ZJ-100X140 100 140
ZJ-70X210 24KV 70 210
ZJ-70X225 70 225
ZJ-75X210 75 210
ZJ-75X225 75 225
ZJ-110X190 110 190
ZJ-110X210 110 210
ZJ-110X225 110 225
ZJ-110X240 110 240
ZJ-130X340 40.5KV 130 340
ZJ-130X360 130 360
ZJ-130X380 130 380
ZJ-145X320 145 320
ZJ-145X340 145 340
ZJ-145X360 145 360
ZJ-145X380 145 380

bushing insulatorpost insulator.jpgpost insulator.jpgpost insulator.jpg
