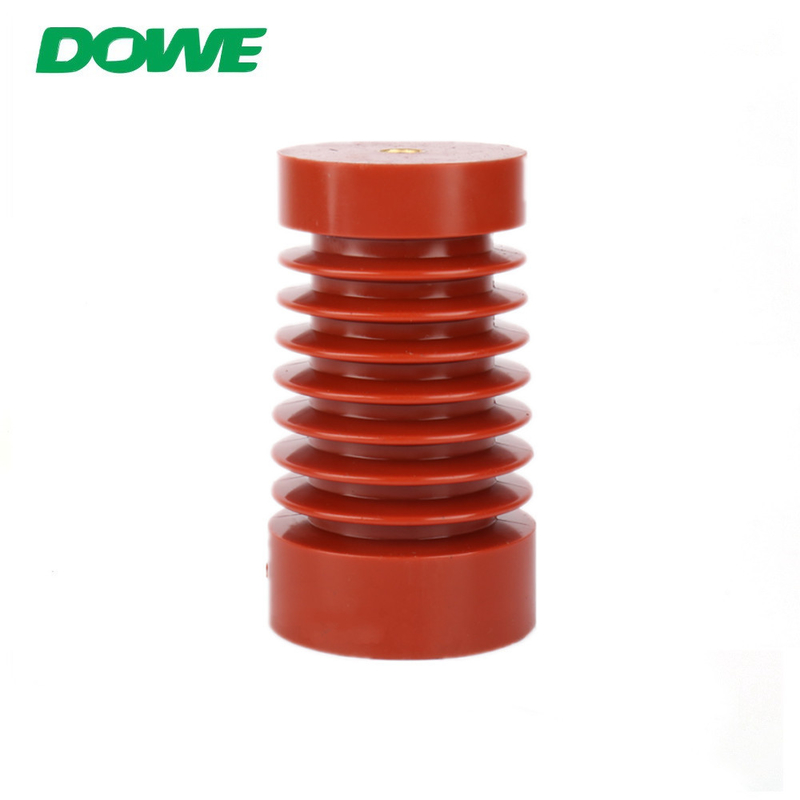

Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140

Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140
Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140

Large Image :  Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140

Product Details:
Place of Origin: CHINA
Brand Name: DOWE
Certification: CE, ROHS
Model Number: 85x140
Payment & Shipping Terms:
Minimum Order Quantity: 200 Pieces
Price: USD2.85
Packaging Details: CTN
Delivery Time: 7-20work days
Payment Terms: Western Union, MoneyGram, T/T, L/C
Supply Ability: 100000PCS/Mon

Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140

Description
Voltage:: 12kv Model: ZJ-10Q/85X140
Material:: Epoxy Resin Operating Temperature:: 30℃~120℃
Dimeter: 85mm Height: 140mm
High Light:

Epoxy Resin Busbar Insulator 12kv

,

Epoxy Resin Busbar Insulator 85X140

,

12kv composite insulator 85X140

12KV High Voltage Epoxy Resin Busbar Insulator ZJ-10KV 85X140 Busbar Composite Insulator

Product Name high voltage insulator
Brand DOWE
Model ZJ-10KV 85X140
Material Epoxy resin
Dimension 85*140
Rated Voltage 10KV-12KV
Application high voltage
Certification CE,ROHS
Operating Temperature -30℃~120℃
Place of Origin China



High voltage standoff insulator description

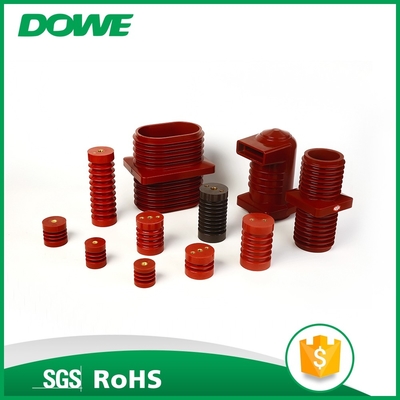

The variety of high voltage insulator listed in sample all adopt epoxy vacuum pouring technology for one-time molding, kinds of bushing,contact box,insulating cylinder and bell housing etc adopt APG technology for molding. While ,some product adopt SMC,DMC un-saturatuon alkyd enlargement mode plastic for compacting molding. All the product are applied to3.6~40.5KV mid-large volt switchboard.

For some product and specification size owning special requirement ,it could be designed and manufactured according to user demand.

Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 0

Name Model Voltage Diameter(mm) Height(mm) Brand
M.V Insulator EL-3M 70X60 3.6KV 70 60 DOWE
EL-6M 70X90 7.2KV 70 90
H.V Insulator ZJ-80X90 12KV 80 90
ZJ-65X130 65 130
ZJ-65X140 65 140
ZJ-70X142 70 142
ZJ-75X130 75 130
ZJ-85X140 85 140
ZJ-85X145 85 145
ZJ-85X150 85 150
ZJ-85X170 85 170
ZJ-100X130 100 130
ZJ-100X140 100 140
ZJ-70X210 24KV 70 210
ZJ-70X225 70 225
ZJ-75X210 75 210
ZJ-75X225 75 225
ZJ-110X190 110 190
ZJ-110X210 110 210
ZJ-110X225 110 225
ZJ-110X240 110 240
ZJ-130X340 40.5KV 130 340
ZJ-130X360 130 360
ZJ-130X380 130 380
ZJ-145X320 145 320
ZJ-145X340 145 340
ZJ-145X360 145 360
ZJ-145X380 145 380

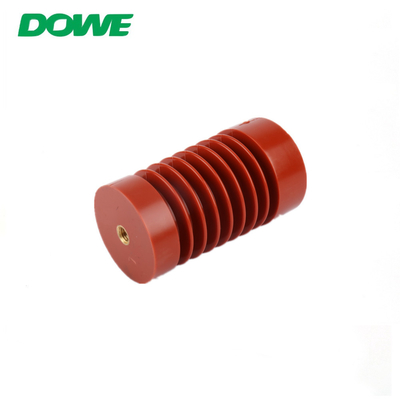

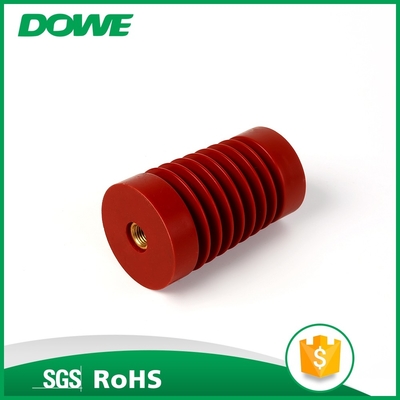

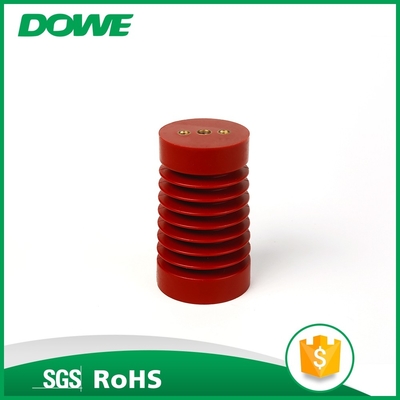

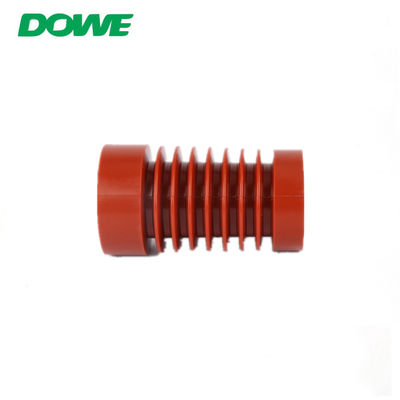

Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 1Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 2Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 3Epoxy Resin Busbar Insulator 12kv Composite Insulator 85X140 4
