Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon

Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon
Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon

Large Image :  Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon

Product Details:
Place of Origin: CHINA
Brand Name: DOWE
Certification: CE,SGS
Model Number: H55X150
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD1-99
Packaging Details: CARTON
Delivery Time: 5-8DAYS
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 1000/DAY

Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon

Description
Name: Tow Chain Product Name: H60 Tow Chain
Inner Diameter: 55mm*150mm Outer Diameter: 75mm*177mm
Function: Machine Tool Accessories Bend Radius: R125/R150/R200/R300/R400/R500
Temperature Range: -40 ~125 Material: PA66
High Light:

integrated brake Cable Drag Chain

,

high tensile load Cable Drag Chain

,

Wire Nylon Cable Carrier Drag Chain

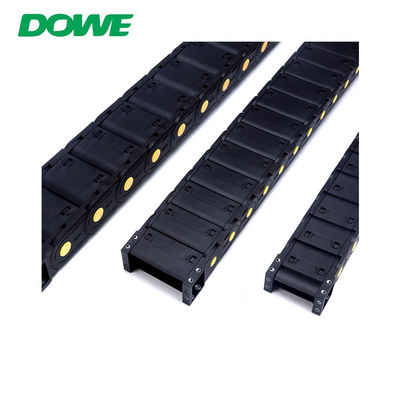

H55x150 Enclosed Towline Yellow Strength Electric Wire Nylon Cable Carrier Drag Chain

YUEQING DUWAI plastic cable drag chains are designed to meet any requirement for dynamic protection of cables and hoses. Our chains are able to withstand the most heavy-duty applications. A non-conclusive list of possible applications for our chains includes horizontal and vertical strokes, long travel distances even beyond 400 m, applications with protective covers, rotations on diameters ranging from less than 1 m up to more than 30 m, robotics.

  • HIGH QUALITY - Reinforced nylon with high pressure and tensile load, good toughness, high elasticity and abrasion resistance.
  • EASY TO INSTALL - The cable drag chain wire carrier is easy to install and repair, free movement, low noise, wear-resistant, high-speed movement.
  • GOOD PERFORMANCE - They reduce wear and stress on cables and hoses, prevent entanglement, flame retardant, and improve operator safety.
  • CUSTOM LENGTH - You can change the length you need by connecting multiple drag chains or splitting a single drag chain.
  • APPLICATION - Widely used to surround and guide flexible electrical cables and small hydraulic or pneumatic hoses connected to moving automated machinery.





Product Description
Product Name Plastic Tow Chain
Brand DOWE
Model H55 tow chain
Material PA66
Inner Diameter 55mm*150mm
Outer Diameter 75mm*177mm
Color black
Sample sample fee refund from 1st order
Bengding Radius R125/R150/R200/R250/R300/R400/R500
Application Machine Tool Accessories
Certification CE,SGS
Operating Temperature -40℃~125℃
Place of Origin China







H55 R125 R150 R200 R250 R300 R400 R500



Inner H*D 55*50 55*60 55*75 55*100 55*125



55*150



55*200 55*250
Outer H*D 75*77 75*87 75*102 75*127 75*152



75*177



75*227 75*277



Advantage:
1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment



Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon 0

Integrated Brake Cable Carrier Drag Chain High Tensile Load Electric Wire Nylon 1
