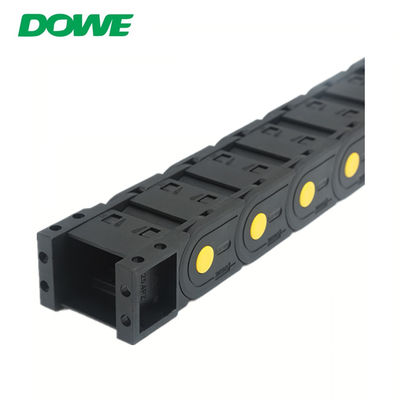

Product Details:
|
| Name: | Tow Chain | Product Name: | H25 Tow Chain |
|---|---|---|---|
| Inner Diameter: | 25mm*77mm | Outer Diameter: | 40mm*95mm |
| Function: | Machine Tool Accessories | Bend Radius: | R55/R100/R125/R150/R175 |
| Temperature Range: | -40 ~125 | Material: | PA66 |
| Product Name | Plastic Tow Chain |
| Brand | DOWE |
| Model | H25 tow chain |
| Material | PA66 |
| Inner Diameter | 25mm*77mm |
| Outer Diameter | 40mm*95mm |
| Color | black |
| Sample | sample fee refund from 1st order |
| Bengding Radius | R55/R75/R100/R125/R150/R175 |
| Application | Machine Tool Accessories |
| Certification | CE,SGS |
| Operating Temperature | -40℃~125℃ |
| Place of Origin | China |
|
H25 R55 R75 R100 R125 R150 R175
|
|||||||
| Inner H*D |
25*25
|
25*38 | 25*50 | 25*57 | 25*60 | 25*77 | 25*103 |
| Outer H*D |
40*43
|
40*56 | 40*68 | 40*75 | 40*78 | 40*95 | 40*121 |
Advantage:
1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment
