Product Details:
|

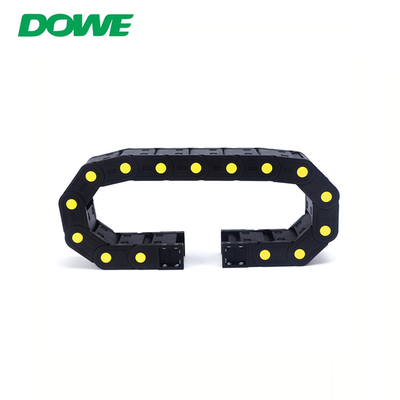

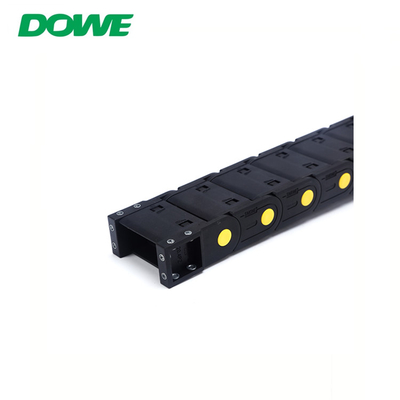

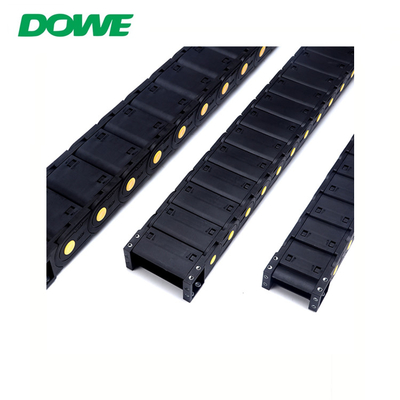

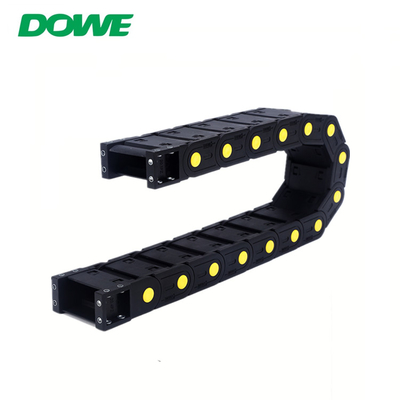

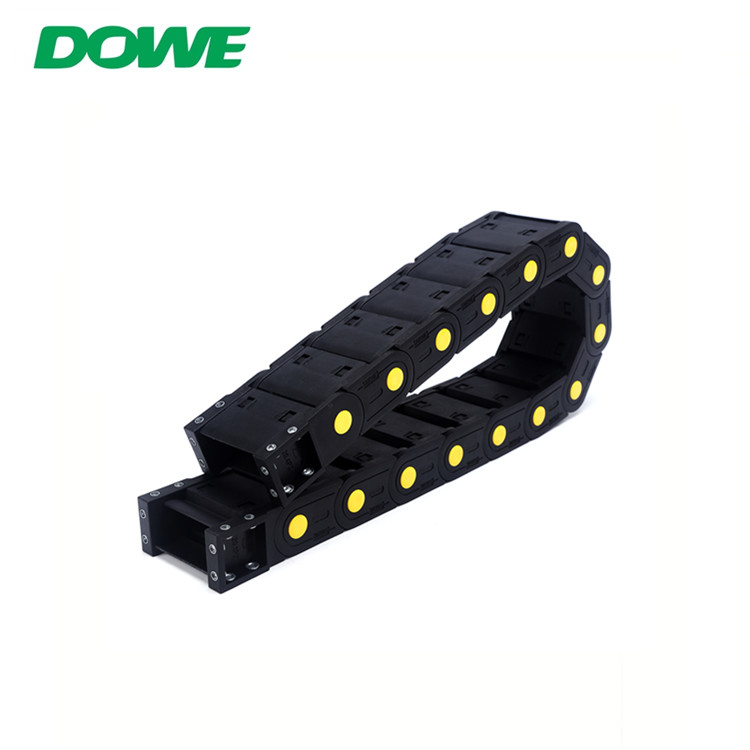

Name: | Tow Chain | Product Name: | H20 Tow Chain |
---|---|---|---|
Inner Diameter: | 20mm*38mm | Outer Diameter: | 35mm*56mm |
Function: | Machine Tool Accessories | Bend Radius: | R55/R100/R125/R150/R175 |
Temperature Range: | -40 ~125 | Material: | PA66 |
Product Name | Plastic Tow Chain |
Brand | DOWE |
Model | H20 tow chain |
Material | PA66 |
Inner Diameter | 20mm*38mm |
Outer Diameter | 35mm*56mm |
Color | black |
Sample | sample fee refund from 1st order |
Bengding Radius | R55/R75/R100/R125/R150/R175 |
Application | Machine Tool Accessories |
Certification | CE,SGS |
Operating Temperature | -40℃~125℃ |
Place of Origin | China |
H20 R55 R75 R100 R125 R150 R175
|
|||||||
Inner H*D | 20*25 |
20*38
|
20*50 | 20*57 | 20*60 | 20*77 | 20*103 |
Outer H*D | 35*43 |
35*56
|
35*68 | 35*75 | 35*78 | 35*95 | 35*121 |
Advantage:
1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment
