Product Details:
|
| Name: | Tow Chain | Product Name: | S25 Anti-Noise |
|---|---|---|---|
| Inner Diameter: | 25mm*57mm | Outer Diameter: | 36mm*75mm |
| Function: | Machine Tool Accessories | Bend Radius: | R55/R75/R100 |
| Temperature Range: | -40 ~125 | Material: | PA66 |
| High Light: | heavy duty drag chain conveyor cnc,6 foot chain drag,6 foot heavy duty drag chain conveyor |
||
| Product Name | Plastic Tow Chain |
| Brand | DOWE |
| Model | S25 anti-noise drag chain |
| Material | PA66 |
| Inner Diameter | 25mm*57mm |
| Outer Diameter | 36mm*75mm |
| Color | black |
| Sample | sample fee refund from 1st order |
| Bengding Radius | R55/R75/R100 |
| Application | Machine Tool Accessories |
| Certification | CE,SGS |
| Operating Temperature | -40℃~125℃ |
| Place of Origin | China |

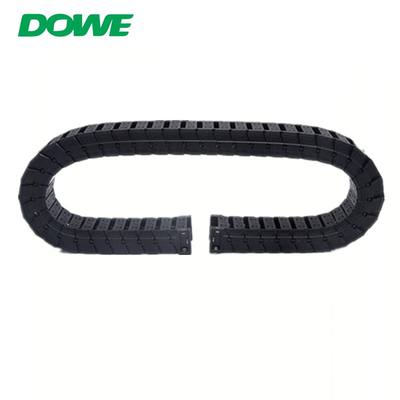

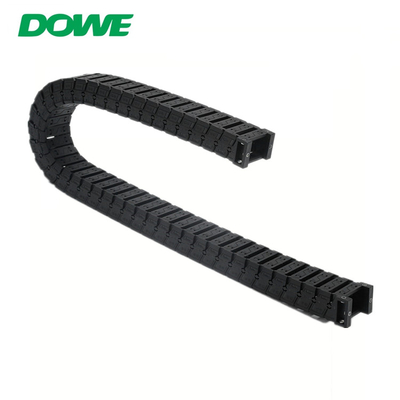

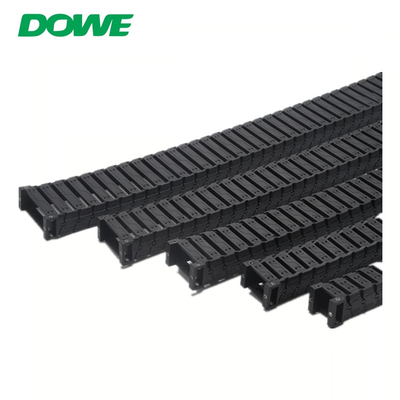

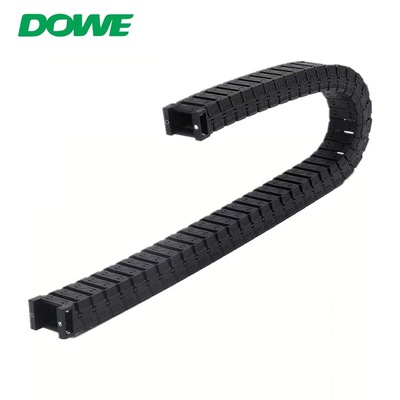

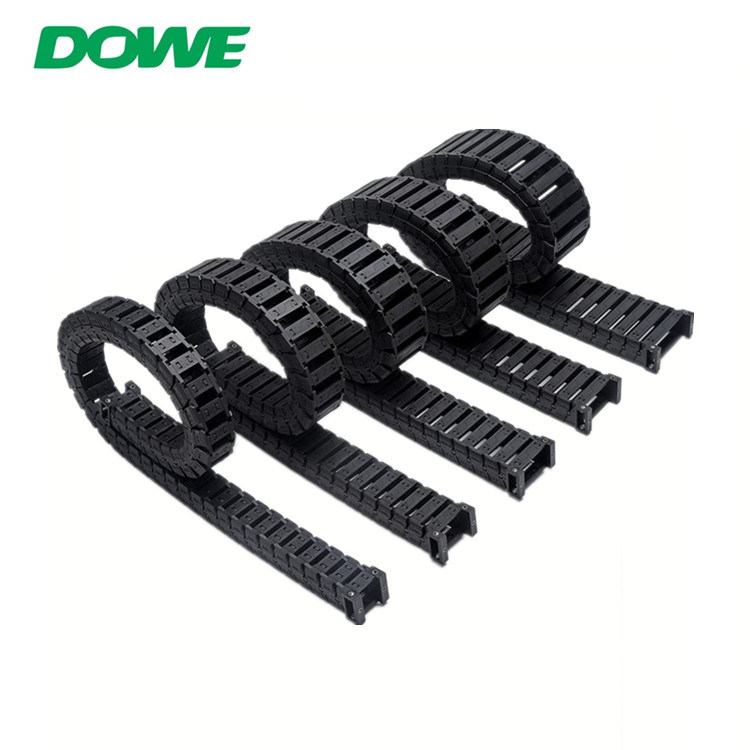

Plastic cable tow chain are designed to protect and convey cables,water pipes and air hoses on machine tools,robots and materials handling equipment.Nylon bridge cable chain threading is suitable for all kinds of small machanical equipmeng use,for wire ,cable,tubing,the trachea and conduit traction and protection.It is impact resistant with high strength and light in weight.The sturdy structure makes it not liable to distort.
Advantage:

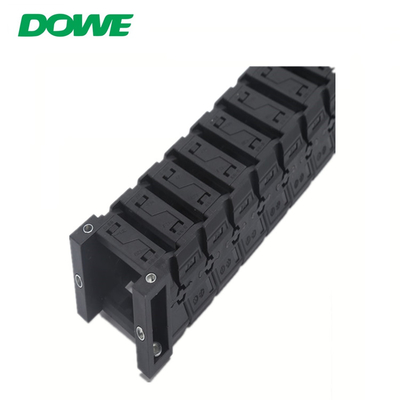

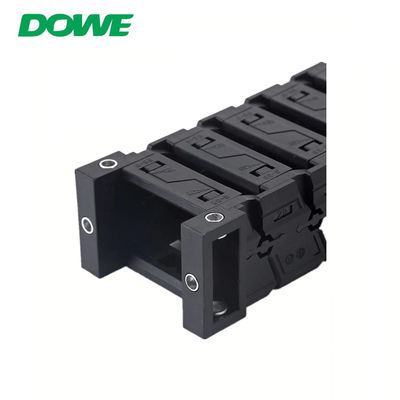

1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment
| S25 R55 R75 R100 | |||||
| Inner H*D | 25*25 | 25*38 | 25*50 | 25*57 | 25*77 |
| Outer H*D | 36* 43 | 36*56 | 36*68 | 36* 75 | 36*95 |
