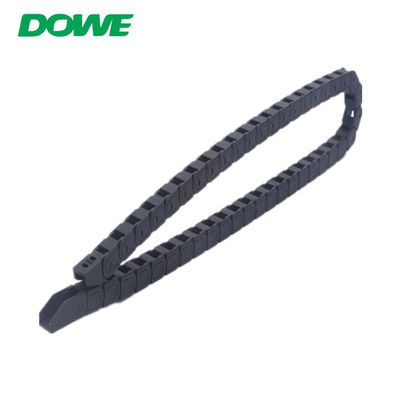

Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC

Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC
Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC

Large Image :  Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC

Product Details:
Place of Origin: CHINA
Brand Name: DOWE
Certification: CE,SGS
Model Number: 10 bridge non-opening
Payment & Shipping Terms:
Minimum Order Quantity: 1piece
Price: USD1-99
Packaging Details: CARTON
Delivery Time: 5-8DAYS
Payment Terms: Western Union, MoneyGram, L/C, T/T
Supply Ability: 1000/DAY

Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC

Description
Name: Tow Chain Product Name: 10 Bridge Non-opening
Inner Diameter: 10mm*30mm Outer Diameter: 15mm*38mm
Function: Machine Tool Accessories Bend Radius: R18/R28/R38
Temperature Range: -40 ~125 Material: PA66



Chian Factory Supply 10 Enclosed Cable Drag Chain Plastic Energy Towing Chain For CNC

Product Description
Product Name Plastic Tow Chain
Brand DOWE
Model 10 enclosed bridge type
Material PA66
Inner Diameter 10mm*30mm
Outer Diameter 15mm*38mm
Color customized
Sample free
Bengding Radius R18/R28/R38
Application Machine Tool Accessories
Certification CE,ROHS,UL for material
Operating Temperature -40℃~125℃
Place of Origin China



Plastic cable tow chain are designed to protect and convey cables,water pipes and air hoses on machine tools,robots and materials handling equipment.Nylon bridge cable chain threading is suitable for all kinds of small machanical equipmeng use,for wire ,cable,tubing,the trachea and conduit traction and protection.It is impact resistant with high strength and light in weight.The sturdy structure makes it not liable to distort.


Advantage:
1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment



10 R18 R28 R38
Inner H*D 10*10 10*15 10*20 10*30
Outer H*D 15*18 15*23 15*28 15*38
