Product Details:
|
| Product Name: | Casing | Model: | TG3-24Q 175X255X310 |
|---|---|---|---|
| Height: | 310mm | Width: | 290mm |
| Screw: | 500g Freely Supplied | Material: | DMC/SMC |
| Insert: | Brass/steel | Torque Stength: | >18N/m |
| Customized: | OEM/ | Certificate: | CE,ROHS,REACH |
| Highlight: | Epoxy Resin Bushing 24kv Switchgear,Epoxy Resin Bushing 24kv,switchgear bushing |
||

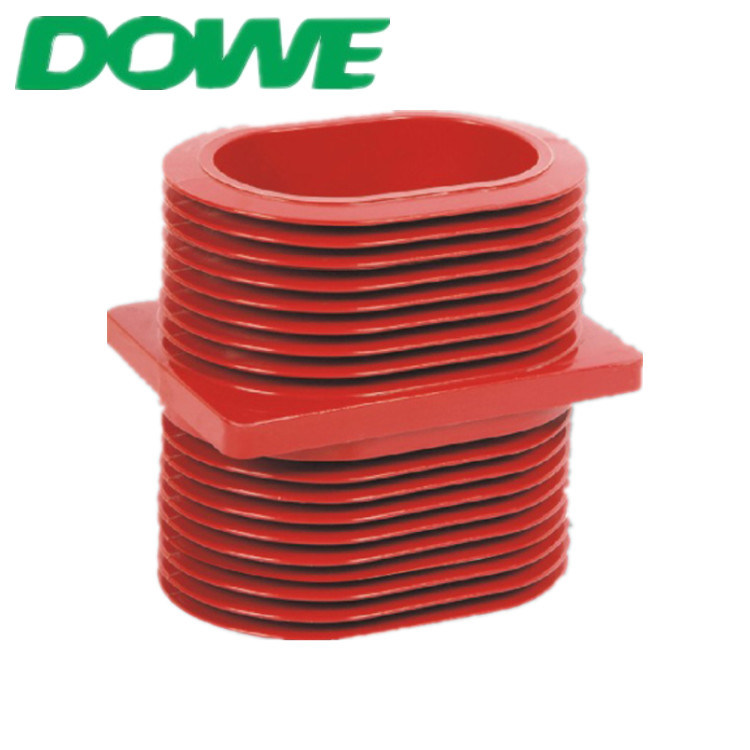

Insulation Bushing Description
1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.
2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 24kv and 35KV.
3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supply the best quality products.
4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.
5. It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.
| Name | Model | Voltage | Install data(mm) | Height(mm) | Brand |
| Epoxy resin bushing | TG1-10Q/128(100X100) | 12KV | 100X100 | 250 | DOWE |
| TG1-10Q/182(125X125) | 125X125 | 235 | |||
| TG2-10Q/210(152X152) | 152X152 | 260 | |||
| TG3-10Q/110X180 | 110X180 | 190 | |||
| TG3-10Q/140X200 | 140X200 | 230 | |||
| TG3-10Q/130X210 | 130X210 | 236 | |||
| TG3-24Q/175X255X218 | 24KV | 175X255 | 218 | ||
| TG3-24Q/175X255X310 | 175X255 | 310 | |||
| TG3-24Q/180X180X280 | 180X180 | 280 | |||
| TG3-24Q/190X190X330 | 190X190 | 330 | |||
| TG3-35Q/260X260X395 | 40.5KV | 260X260 | 395 | ||
| TG3-35Q/260X260X420 | 260X260 | 420 | |||
| TG3-35Q/260X260X450 | 260X260 | 450 | |||
| TG3-35Q/220X220X420 | 220X220 | 450 | |||
| TG3-35Q/180X180X550 | 180X180 | 550 |
Application
Epoxy resin cast insulation bushing, connect with charged display device, used in switchgear application.
Wall bushings are used for power distribution devices and high-voltage electrical appliances in power stations and substations, for conductors to pass through grounding partitions, walls or electrical equipment enclosures, and support conductive parts to insulate them from the ground or enclosure.
