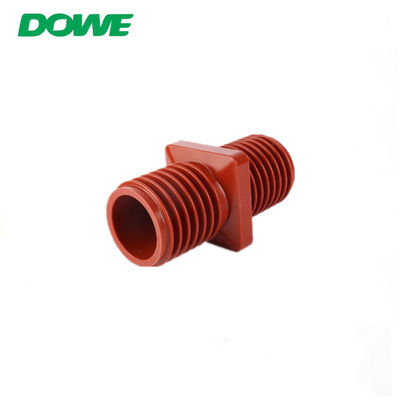

Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert

Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert
Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert
Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert

Large Image :  Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert

Product Details:
Place of Origin: China
Brand Name: DOWE
Certification: SGS ROHS REACH CE
Model Number: TG-10Q/130x210
Payment & Shipping Terms:
Minimum Order Quantity: 2
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Contact Now

Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert

Description
Product Name: High Voltage Sensor Model: TG-10Q/130x210
Height: 130mm A/F: 210mm
Screw: 500g Freely Supplied Material: Epoxy Resin
Insert: Brass/steel Torque Stength: >18N/m
Customized: OEM/ Certificate: CE,ROHS,REACH
Highlight:

high voltage electrical bushing

,

Transformer Epoxy Resin Bushing

,

Epoxy Resin Bushing High Voltage 10KV

DOWE High Voltage Casing 10KV Bushing Insert Suppliers Epoxy Bushing For Transformer



High voltage standoff insulator description
The variety of high voltage insulator listed in sample all adopt epoxy vacuum pouring technology for one-time molding, kinds of
bushing,contact box,insulating cylinder and bell housing etc adopt APG technology for molding. While ,some product adopt SMC,DMC un-saturatuon alkyd enlargement mode plastic for compacting molding. All the product are applied to3.6~40.5KV mid-large volt switchboard.
For some product and specification size owning special requirement ,it could be designed and manufactured according to user
demand.
Application
Applicable to all shopping malls, supermarkets, national grids, substations, power energy, urban power and other fields.
Mainly used in switch cabinets, power stations, outdoor high voltage, switchgear,etc.



Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 0

Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 1







Name Model Voltage Install data(mm) Height(mm) Brand
Epoxy resin bushing TG1-10Q/128(100X100) 12KV 100X100 250 DOWE
TG1-10Q/182(125X125) 125X125 235
TG2-10Q/210(152X152) 152X152 260
TG3-10Q/110X180 110X180 190
TG3-10Q/140X200 140X200 230
TG3-10Q/130X210 130X210 236
TG3-24Q/175X255X218 24KV 175X255 218
TG3-24Q/175X255X310 175X255 310
TG3-24Q/180X180X280 180X180 280
TG3-24Q/190X190X330 190X190 330
TG3-35Q/260X260X395 40.5KV 260X260 395
TG3-35Q/260X260X420 260X260 420
TG3-35Q/260X260X450 260X260 450
TG3-35Q/220X220X420 220X220 450
TG3-35Q/180X180X550 180X180 550



Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 2Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 3Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 4Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 5Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 6Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 7Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 8Transformer Epoxy Resin Bushing High Voltage Electrical 10KV Insert 9
