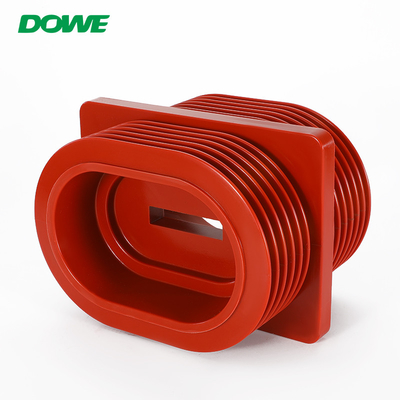

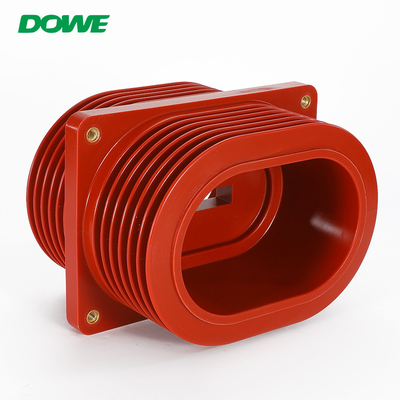

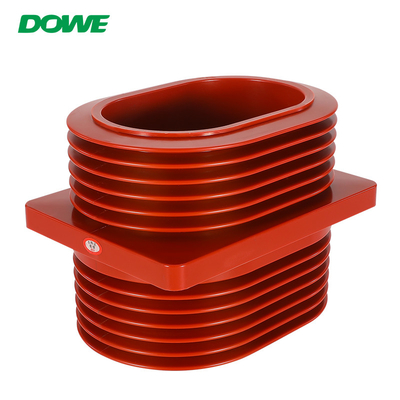

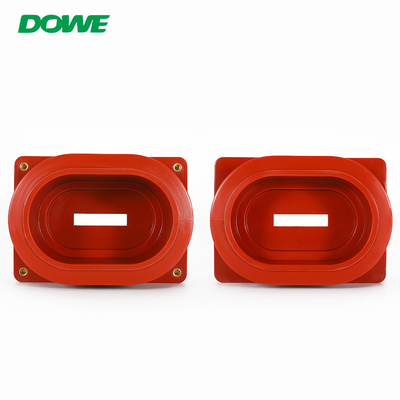

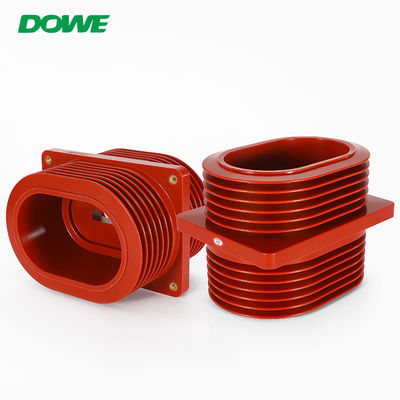

Product Details:
|
| Type: | TG3-24Q 175X255 | Material: | Epoxy Resin |
|---|---|---|---|
| Voltage: | 25KV | Install Hole: | 175x255 |
| Height: | 255 | Diameter: | 278 |
| Technical: | APG | ||
| High Light: | High Cabinet Epoxy Resin Bushing,175 X 225 Epoxy Resin Bushing,24KV Wall Through Epoxy Resin Bushing |
||
Features:
1. The product adopts epoxy resin material. It gains high level of insulation, intensity and stability.
2. Bushing series is used for insulation and connection transition of completes with rated voltage of 12KV, 24KV,35KV and below.
3. Epoxy resin vacuum casting, the APG epoxy resin pressure gelatin, the liquid silica gel formation, we always supplies the best quality products.
4. It can be detected by X-ray instrument, bureau put instrument, thermal Cycle Test Machine.
5 It provides different specifications based on the size of electric current for the user’s choice, and sold well both at home and abroad.
Applicable Work Environment:
1. Indoor installation.
2. Altitude: ≤1000m.
3. Ambient temperature: +40°C~5°C.
4. The relative humidity shall not be more than 85%at+20°C ambient temperature.
5. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance
| Model Name: | TG3-24Q/175X255 |
| Brand: | DUWAI |
| Type: | Wall bushing |
| Application: | High Voltage / Switchgear |
| Color: | brown, red |
| Product Certification: | CE and ISO 9001:2000 |
| Rated voltage: | 24KV |
| MOQ: | 1pcs |
| Packing: |
1. Each one is wrapped with plastic film 2. Packed in cartons 3.Cartons are sealed in a wooden box 4.The cases are bound with iron belts externally |
| Loading port: | Shanghai Port / Ningbo Port |
| Payment terms: | T/T, Western Union |
| Delivery time: | within 15 days, depends on order quantity |
| Additional: |
1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification |

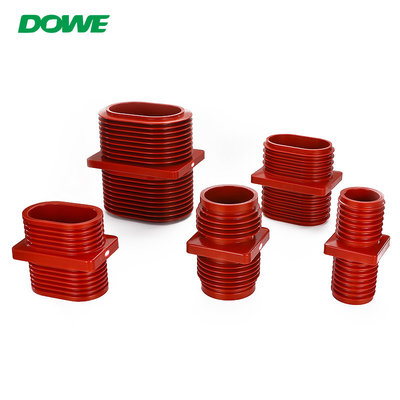

| Name | Model | Voltage | Install data(mm) | Height(mm) | Brand |
| Epoxy resin bushing | TG1-10Q/128(100X100) | 12KV | 100X100 | 250 | DOWE |
| TG1-10Q/182(125X125) | 125X125 | 235 | |||
| TG2-10Q/210(152X152) | 152X152 | 260 | |||
| TG3-10Q/110X180 | 110X180 | 190 | |||
| TG3-10Q/140X200 | 140X200 | 230 | |||
| TG3-10Q/130X210 | 130X210 | 236 | |||
| TG3-24Q/175X255X218 | 24KV | 175X255 | 218 | ||
| TG3-24Q/175X255X310 | 175X255 | 310 | |||
| TG3-24Q/180X180X280 | 180X180 | 280 | |||
| TG3-24Q/190X190X330 | 190X190 | 330 | |||
| TG3-35Q/260X260X395 | 40.5KV | 260X260 | 395 | ||
| TG3-35Q/260X260X420 | 260X260 | 420 | |||
| TG3-35Q/260X260X450 | 260X260 | 450 | |||
| TG3-35Q/220X220X420 | 220X220 | 450 | |||
| TG3-35Q/180X180X550 | 180X180 | 550 |
