DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical

DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical

Large Image :  DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical

Product Details:
Place of Origin: CHINA
Brand Name: DOWE
Certification: CE ROHS
Model Number: ZJ-24Q 110X190
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD18/PC
Packaging Details: CARTON
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000PCS/30DAYS
Contact Now

DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical

Description
Product Nam: H.V Insulator Material: Epoxy Resin
Certification: CE ROHS Model: ZJ-24Q 110X190
Height: 190mm Diameter: 110mm
Brand Name: DOWE Voltage: 24kv

 DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical

Products Description
Product Name
Insulation Insulator
Model
ZJ-24Q 110X190
Brand
DUWAI
Material
Epoxy resin
Insert
Brass
Color
Red for stock,Customized according necessary
Rated Voltage
24KV
Application
Distribution Box, Switch gear, Capacitor......
Certification
CE,SGS,ROHS,ELV,REACH
Standoff Insulators are designed from a fiberglass-reinforced thermo-set polyester, which is a bonded material that offers a higher moisture and heat tolerance compared to that of plastic insulators.

Additionally, standoffs offer excellent mechanical strength for allowing electrical installers to raise close height tolerances compared to that of porcelain insulators. They are flame retardant and offer high arc resistance, track resistance, and shatter resistance as well.

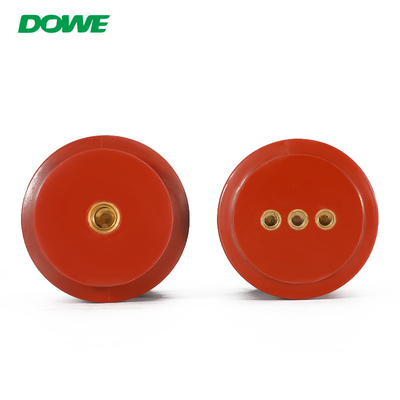

DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 0

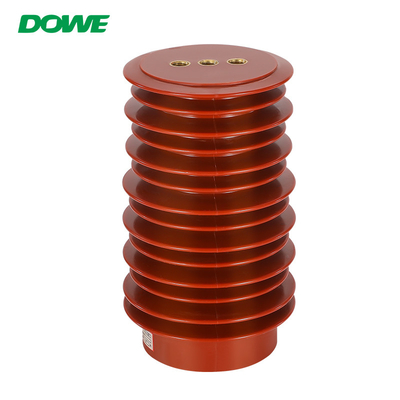

DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 1

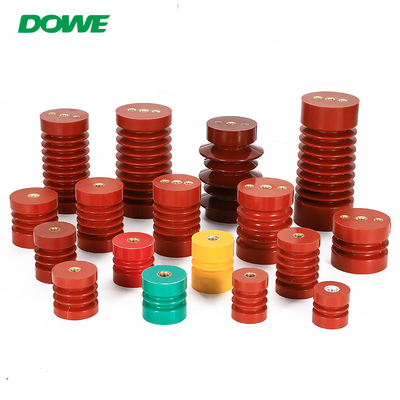

DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 2
Name
Model
Voltage
Diameter(mm)
Height(mm)
Brand
H.V Insulator
ZJ-80X90
12KV
80
90

ZJ-65X130
65
130
ZJ-65X140
65
140
ZJ-70X142
70
142
ZJ-75X130
75
130
ZJ-85X140
85
140
ZJ-85X145
85
145
ZJ-85X150
85
150
ZJ-85X170
85
170
ZJ-100X130
100
130
ZJ-100X140
100
140
ZJ-70X210
24KV
70
210
ZJ-70X225
70
225
ZJ-75X210
75
210
ZJ-75X225
75
225
ZJ-110X190
110
190
ZJ-110X210
110
210
ZJ-110X225
110
225
ZJ-110X240
110
240
ZJ-130X340
40.5KV
130
340
ZJ-130X360
130
360
ZJ-130X380
130
380
ZJ-145X320
145
320
ZJ-145X340
145
340
ZJ-145X360
145
360
ZJ-145X380
145
380
Details Images

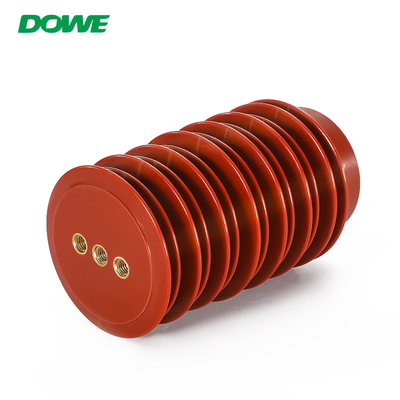

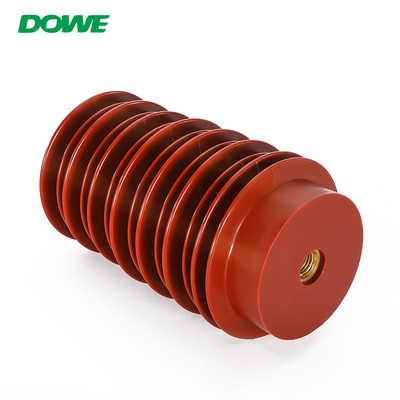

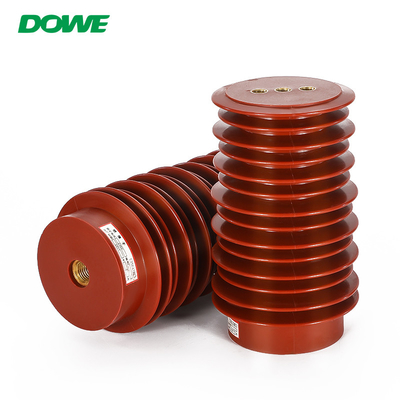

DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 3
Related Product
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 4
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 5
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 6
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 7
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 8
Product packaging
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 9
Product Application
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 10
Factory
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 11
Company Profile
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 12
DUWAI 24KV High Voltage Busbar Standoff Epoxy Resin Insulator 190MM ZJ-24Q 110X190 for Electrical 13
