Product Details:
|
| Model Number: | DW Insulator | Customized: | OEM |
|---|---|---|---|
| Product Nam: | Mid Voltage Insulator | Rated Voltage: | 220KV-12KV |
| Application: | Low Voltage,electrical Application | Material: | DMC/BMC,SMC |
| Screw: | M8/M10/M12 | Voltage Withstand:: | 7200V |
| Tensile Strength: | 6N.m-50N.m |
DW medium and high voltage resin insulators are electrical nsulators used in power transmission and distribution systems. These insulators are typically made of a composite materia, consisting of a core made of fitberglass reinforced epoxy resin and an outer layer of silicone rubber. The resin core provides mechanical strength and dimensional stability, while the silicone rubber layer provides excellent resistance to weathering and electrical tracking.
| Model Number | DW |
| Material | DMC,BMC |
| Customized | Yse |
| Screw | M8/M10/M12 |
| Flame Retardant | UL94-V0 |
| Voltage | 220V-12KV |
| Application | Insulation Support |
| Certificate | CE,SGS,ROHS |

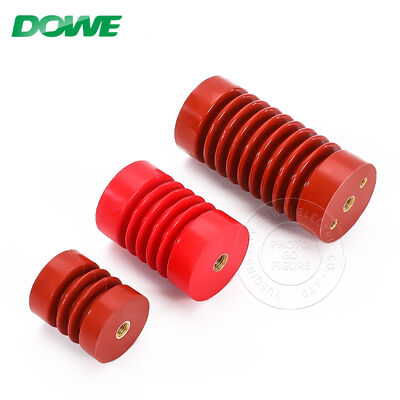

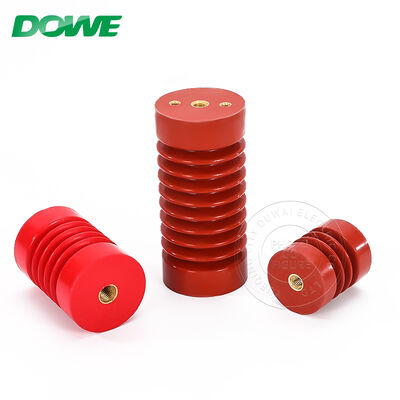

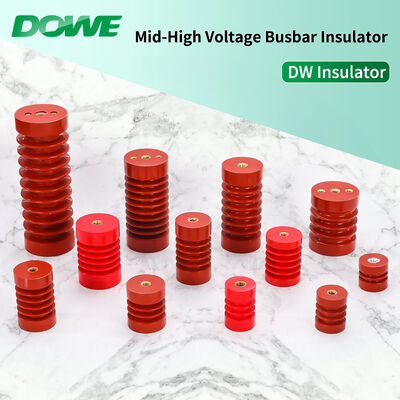

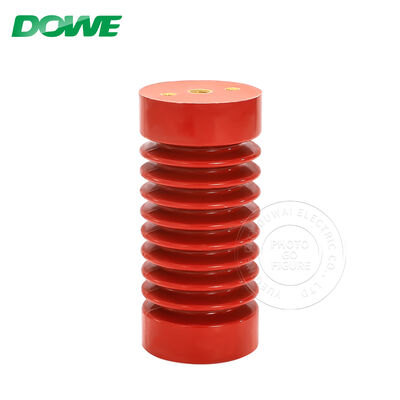

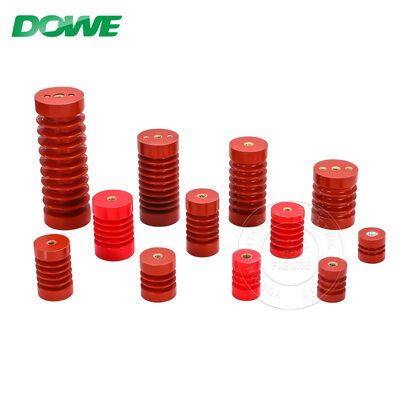

DW Mid Voltage Insulator is made of DMC,used for Mid voltage application(220V-12KV),such as distribution box,swithgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.
| Model | Diameter (D)(mm) | Height (H)(mm) | Screw(S) | Model |
Diameter (D)(mm) |
Height (H)(mm) | Screw(S) |
| DW35*30 | 35 | 30 | M8/M10 | DW50*40 | 50 | 40 | M10/M12 |
| DW35*40 | 40 | DW50*50 | 50 | ||||
| DW35*50 | 50 | DW50*60 | 60 | ||||
| DW35*60 | 60 | DW50*70 | 70 | ||||
| DW35*70 | 70 | DW50*80 | 80 | ||||
| DW35*80 | 80 | DW50*90 | 90 | ||||
| DW40*40 | 40 | 40 | M10/M12 | DW50*100 | 100 | ||
| DW40*50 | 50 | DW60*50 | 60 | 50 | M10/M12 | ||
| DW40*60 | 60 | DW60*60 | 60 | ||||
| DW40*70 | 70 | DW60*70 | 70 | ||||
| DW40*80 | 80 | DW60*80 | 80 | ||||
| DW40*90 | 90 | DW60*90 | 90 | ||||
| DW40*100 | 100 | DW60*100 | 100 | ||||
| DW60*130 | 130 | ||||||
| Customized: According customer's requirement | |||||||
DOWE comes from "Do we could ,Do well we could ". Based on it, DOWE will march forward steadily in international market with customers all over the world hand by hand! We make 100% of our efforts in technology research and line expansion for related electrical equipment ,such as power meter, panel meter, fuse,H.V. electrical components and EX-connector etc.
-Professionalism
We make 100% of our efforts in technology research and line expansion for related electrical equipment ,such as power meter, panel meter, fuse,H.V. electrical components and EX-connector etc. With more than 10 years experiences, we have owned core technical knowledge and hundreds of standard products for customer's selection
-Product Quality
We always attached great importance to quality than to quantity. In Dowe, every product should obey a strict and complete procedure and standard from research, design, prototype, component selection, test production, mass production, to quality control. In administration affair, we have a high efficiency computerized management system from receiving orders at sales department to shipping to ensure our best service for our customers.
-Service
We realize electric products need to meet application requirement with customer's final equipment. "Customer Satisfaction" is a motivated power for Dowe future growth. We strongly believe you will satisfy our total services, no matter in attitude, respond time, information offer before sales, technical support, prompt delivery, after-sales services, and customer's quality claim issue.
Finally, we would like to appreciate the past supports from our worldwide customers to be today's Dowe. We expect to get your continuous support and can be your best and trustworthy partner forever.
Our company offers comprehensive Product Technical Support and Services for the Busbar Insulator. Our team of experts is available to provide assistance with installation, troubleshooting, and maintenance of the product.
Technical support includes guidance on proper usage, product specifications, and addressing any issues that may arise during operation. Our services also extend to training programs to ensure proper handling and care of the Busbar Insulator.
1. who are we?
We are based in Zhejiang, China, start from 2012,sell to Domestic Market,Western Europe,Southeast Asia,North America,South America,Eastern Europe,Africa,Oceania,Mid East,Northern Europe,Southern Europe,South Asia,Eastern Asia,Central America. There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
H.V Insualtor,Insulation Bushing,Busbar Insulator,Standoff Insulator,Busbar Clamp
4. why should you buy from us not from other suppliers?
80% produced by DOWE
Superior on delivery time
Stabilization on quality
SGS,ELV,CCC,CE,REACH,ROHS
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
