Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm

Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm
Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm
Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm

Large Image :  Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm

Product Details:
Place of Origin: china
Brand Name: DOWE
Certification: CE
Model Number: EL-130
Payment & Shipping Terms:
Minimum Order Quantity: 1000
Price: $0.1-$5
Packaging Details: CTN
Delivery Time: 20days
Payment Terms: T/T L/C
Supply Ability: 50000PCS/20days

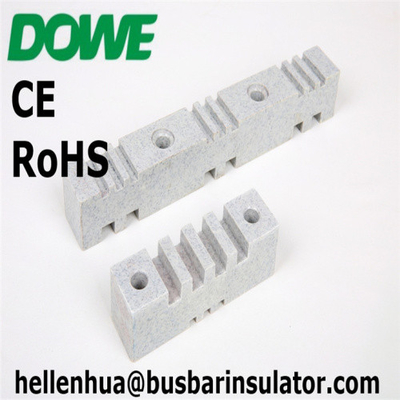

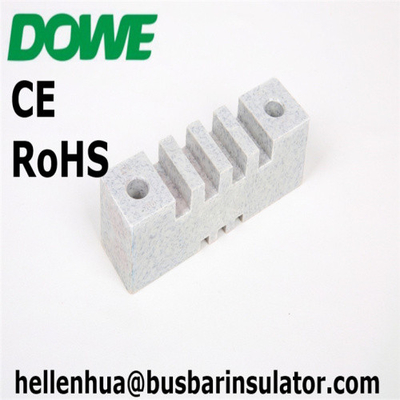

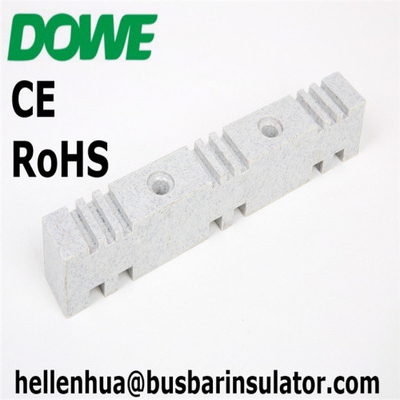

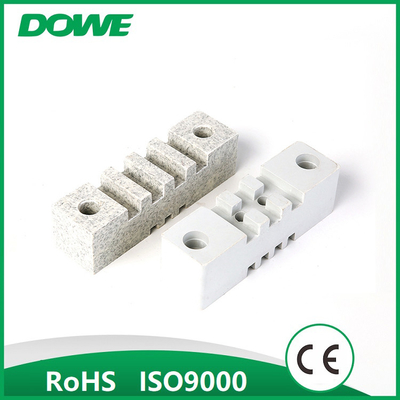

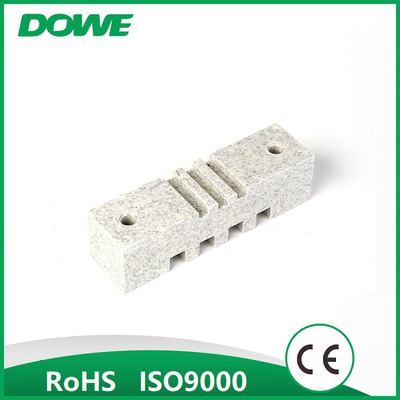

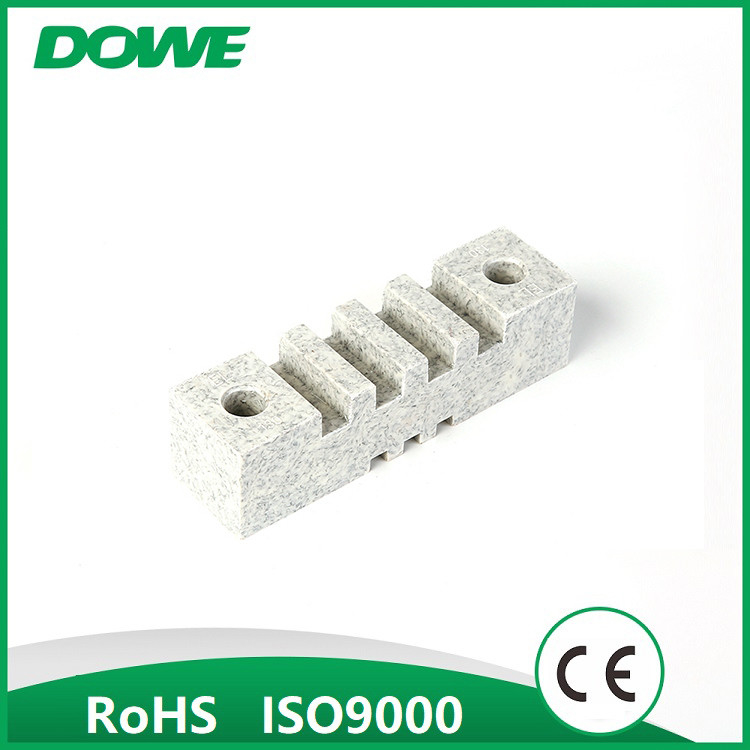

Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm

Description
Product Name: EL Busbar Clamp Material: DMC/SMC
Color: White/marble Type: EL-130
Length: 130mm Height: 35mm
High Light:

DMC SMC Insulators 130mm

,

DMC SMC Insulators Busbars

,

dmc earthing insulators

Busbar Insulator EL-130 Busbar Support White Bus Bar Clamp Insulator With Customized



Product Description



Insulator is the special part to fix,install and insulat on communication, electric power, lightning protection, machinery, medical, wind energy, frequency conversion equipment,new energy vehicles (integrated chassis cabinets, locker, etc.) to provide meet the fixed support, installation and insulation isolation effect of special parts, it is also known as insulators, insulation column .Its appearance is usually the cylinder,hexagonal,round.There is the insert on the  two surface of insulator.





  1. TYPE:Busbar support
  2. Length:130mm
  3. Insert:M10
  4. Material:DMC/SMC
  5. Color:required
  6. V0,ROHS,UL according your necessary.Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm 0
  7. Model Length(mm) Height(mm) Width(mm) Customized
    L100 100 40 30 According customer's requirement
    L125 120 25 35
    C100 100 40 37.5
    C125 125 35 37.5
    EL130 130 35 35
    EL180 180 28 34
    EL210 210 28 34
    EL270 270 35 35
    EL295 295 35 35
    EL409 409 35 35
    EL500 500 35 35
    EL600 600 35 35
    EL800 800 35 35
    EL155 155 60 60
    L85 40 85 50
    L100 40 100 50
    L125 40 125 50
    PV5 76 40 30
    PV8 76 40 30
    PV10 76 40 30

Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm 1Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm 2Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm 3Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm 4Earthing DMC SMC Insulators Busbars Support White Bus Bar Clamp 130mm 5







Packaging & Shipping



Packing:10pcs/box,300pcs/carton



Shippping:sample by express

             cargo by sea

Delivery:according the quantity.

Our Services



DOWE comes from "Do we could ,Do well we could ". Based on it, DOWE will march forward steadily in international market with customers all over the world hand by hand! We make 100% of our efforts in technology research and line expansion for thermoplastic products.

Company Information



More than 10 years on insulator.

Main products: pin insulator,round insulator,conical insulator,hexagonal insulator.

Certificates: CE, RoHS and UL

We cordially welcome customers from all over the world to contact us and develop our markets together. We guarantee superior quality, competitive prices, and best after-sale services.



FAQ



 1 How long is your products warranty ?

A: The warranty period of our products is 18 months.

2 What is the material of your insulator?

A:DMC,V0,RoHS.

3 How about inspection?

A: We have the whole inspection system from raw material to end products include temperature test,strength test and so on.

4 What do you have for certificate?

A: Our products are passed through IEC60947and IEC60269standarded.

5 What is payment terms?

A: T.T,Western Union and L/C isacceptable.

6 What is the service offered by company?

A: We have the professional enginer team which can design and develop the mold to arrive different customer nequirement.

We also have the sales team to offer good service from pre-sale to after-sale.

7 How to become the agents for DOWE?

A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest,let us discuss more !
