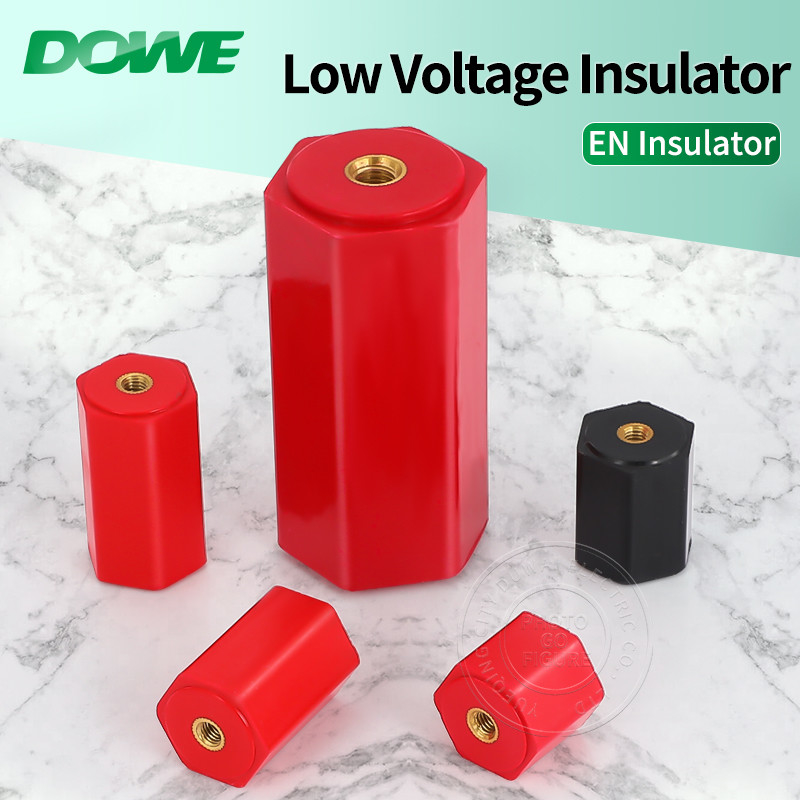

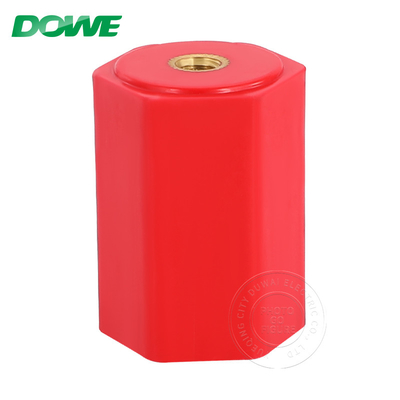

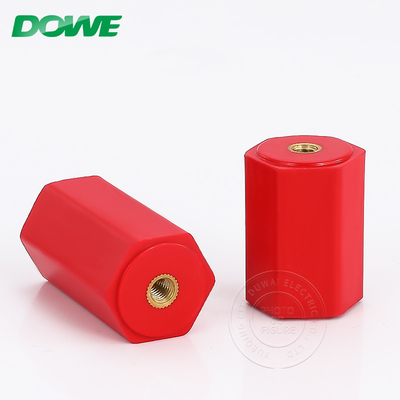

DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength

DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength
DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength
DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength

Large Image :  DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength

Product Details:
Place of Origin: China(Mainland),Zhejiang
Brand Name: DOWE
Certification: SGS CE REACH
Model Number: EN2625
Payment & Shipping Terms:
Minimum Order Quantity: 2000pcs
Price: USD0.16-0.99pcs
Packaging Details: 1000PCS/CTN
Delivery Time: 7days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000pcs per week
Contact Now

DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength

Description
Product Name: Hexagonal Insulator Type: EN Insulator
Sample: 2pcs Free Voltage: 660V-4500V
Dimension: 26X25 Torgue Strength(FT LBS): ≥8
Material: DMC/BMC Operating Temperature: 30℃~120℃
Application: Electrical Application Color: Customized
Highlight:

DMC Fibreglass Busbar Isolator

,

EN Polyester Standoff Busbar Isolator

,

Busbar Isolator With Screw

DUWAI DMC Fibreglass Busbar Isolator EN Polyester Standoff Insulators With Screw High-Strength Busbar Insulator

● Product:

- EN26-25
- Height: 25 mm
- Material: DMC
- Nut size: M6
- Nut material:copper
- Screw hole depth:13.5 mm
- Strength: axial tensile 4000N, bending 5000N, tightening torque 20N/ m
- Insulation resistance >1500MΩ
- Electrical properties: Operating voltage:1500V, pulse voltage:10000V
- Leakage current <1mA at 2000V operating voltage
- Minimum arc distance: 15 (mm)

● Package:

- EN26X25 - 2pcs

● Description:

- EN-25 with screw High-strength insulator,complex insulators.
- The product is generally cylindrical, with one screw hole at each end and a screw to fix the line that needs to be connected.
- This is a insulators set, including two pieces,and with corresponding screws.
- Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of insulation and connection.
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.Excellent texture and good workmanship are your choice.

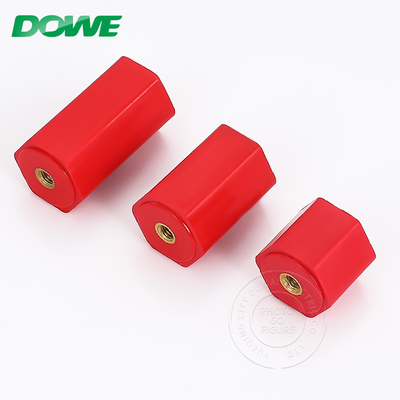

Model Diameter Height Screw
EN25 26 25 M6
EN30 26 30 M6
EN32 26 32 M6
EN40 26 40 M6
EN100 45 100 M10/M12
EN110 45 110 M10/M12
EN120 45 120 M10/M12





DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength 0DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength 1DMC Fibreglass Busbar Isolator EN Polyester Standoff With Screw High Strength 2
