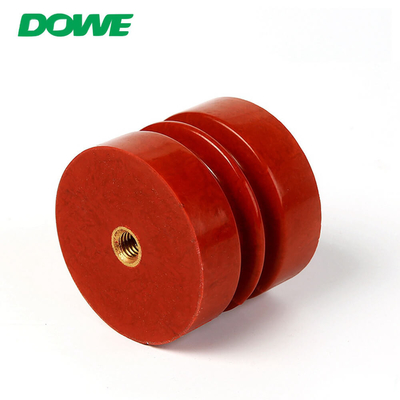

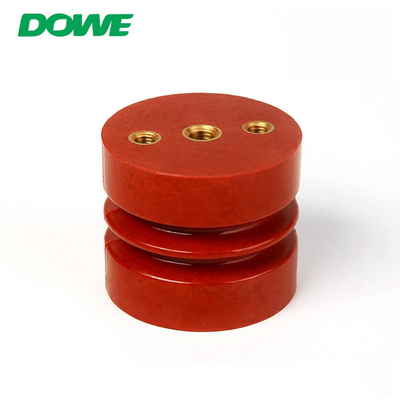

Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage

Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage
Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage
Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage

Large Image :  Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage

Product Details:
Place of Origin: CHINA
Brand Name: DOWE
Certification: CE ROHS
Model Number: EL-3M
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD1.9-2.9/PC
Packaging Details: CARTON
Delivery Time: 5-8days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000PCS/30DAYS

Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage

Description
Product Nam: M.V Insulator Material: Epoxy Resin
Color: Red Certification: CE ROHS
Height: 60mm Diameter: 70mm
Brand Name: DOWE Voltage: 3.6KV
Model: EL-3M
High Light:

Polyester Busbar Standoff Insulators

,

Busbar Standoff Insulators Middle Voltage

,

polyester standoff insulators

        EL-3M Middle Voltage Electrical Insulator Support


Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage 0
Epoxy Resin Insulator

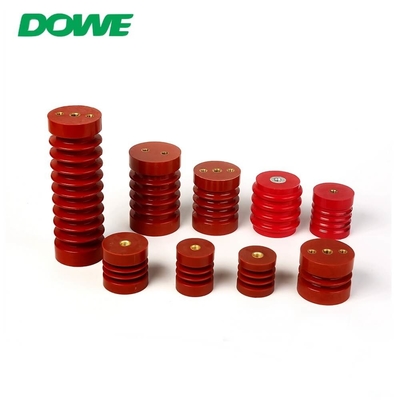

DOWE is the China supplier for DMC/SMC/Epoxy resin insulator for low voltage and high voltage electrical application.
There are thoustands of busbar insulator and busbar clip,height from 16mm to 380mm,voltage is from 660V to 40.5KV according
IEC60439.Metric insulator and GB insulator according customizer’s necessary.

CE,SGS,ELV for insulator,UL for material.






Product Name Middle Voltage Electric Insulator
Brand DOWE
Model EL-3M
Material Epoxy resin
Height x Diameter 70x60
Rated Voltage 3.6KV
Application middle voltage
Certification CE,ROHS
Operating Temperature -30℃~120℃
Place of Origin China

busbar support.jpg

Name Model Voltage Diameter(mm) Height(mm) Brand
M.V Insulator EL-3M 70X60 3.6KV 70 60 DOWE
EL-6M 70X90 7.2KV 70 90
H.V Insulator ZJ-80X90 12KV 80 90
ZJ-65X130 65 130
ZJ-65X140 65 140
ZJ-70X142 70 142
ZJ-75X130 75 130
ZJ-85X140 85 140
ZJ-85X145 85 145
ZJ-85X150 85 150
ZJ-85X170 85 170
ZJ-100X130 100 130
ZJ-100X140 100 140
ZJ-70X210 24KV 70 210
ZJ-70X225 70 225
ZJ-75X210 75 210
ZJ-75X225 75 225
ZJ-110X190 110 190
ZJ-110X210 110 210
ZJ-110X225 110 225
ZJ-110X240 110 240
ZJ-130X340 40.5KV 130 340
ZJ-130X360 130 360
ZJ-130X380 130 380
ZJ-145X320 145 320
ZJ-145X340 145 340
ZJ-145X360 145 360
ZJ-145X380 145 380

Epoxy Resin Polyester Busbar Standoff Insulators Middle Voltage 2

















































FAQ

Q: Can I get some samples?
A: Yes,sample order is available for quality check and market test.But you have to pay the express cost.
Q: What’s delivery time?
A: It’s usually takes about 7 working days for small order and 15days for big order.
Q: What’s your payment terms?
A: We usually accept all kinds of payment terms.Such as T/T,L/C,Westerm union,Cash.
Q: What’s your warranty terms?
A: We offer 18 months warranty terms.
Q: Do you have the products in stock?
A: Depends on your request,we have standard models in stock.Some special product and big order will be newly produced according to your order.
Q: Can I mixed different type in one container?
A: Yes,different models can be mixed up in one container,even one order.
Q: How does your factory do the quality control?
A: Quality is priority,we always attach the importance to quality control from the beginning to the end of the production.Every product will be fully assembled and carefully tested before packing and shipping.
Q: I would like to know if you have a partner for export?
A: Yes,DOWE have the right to export and can sell product all over the word.
Q: How can I trust you?
A: DOWE is honesty and loyalty.Our company has been audited and approved ISO9001,CE.Assessment report will could be sent to you by e-mail.Also we are Alibaba’s good supplier since 2006.Now we have clients all around the world.
Q: What do you have for certificate?
A: Our products are passed through IEC60947 and IEC60269 standarded.
Q: How to become the agents for DOWE?
A: It is OK! We will depend on the sales turn over and also do research on your market. If your have interest,let us discuss more !
