Home ProductsCable Drag Chain

Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain

Certification
China Yueqing City DOWE Electric Co.,LTD certification
China Yueqing City DOWE Electric Co.,LTD certification
I'm Online Chat Now

Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain

Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain
Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain

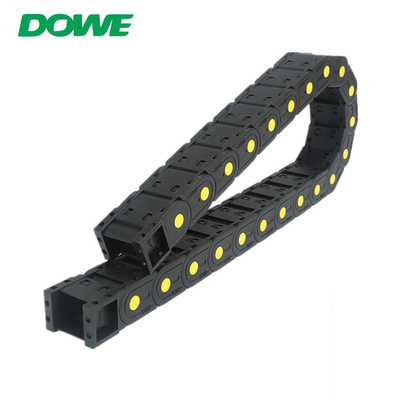

Large Image :  Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain

Product Details:
Place of Origin: CHINA
Brand Name: DOWE/DUWAI
Certification: SGS,CE
Model Number: H25X38
Payment & Shipping Terms:
Minimum Order Quantity: 1meter
Price: 7.4-8.9/METER
Packaging Details: 1pcs/bag
Payment Terms: T/T
Supply Ability: 1000meter/week

Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain

Description
Material: PA66 Inner Diameter: 25mmx38mm
Outer Diameter: 40mmx56mm Bengding Radius: R55/R75/R100/R125/R150/R175
Color: Black Application: Industrial,Machine Tools Accessories,tractor Trailer Heavy Duty Weather Resistant Industrial,Moving Cable Protection,Electrical Equipment
Function: Protected Cable,water Pipe,machine Tool Accessories,gas Pipe

Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain

Product Description
PA66 Cable Drag Chain For CNC Machine
Cable carriers, also known as drag chains, energy chains, or cable chains depending on the manufacturer, are guides designed to
surround and guide flexible electrical cables and hydraulic or pneumatic hoses connected to moving automated machinery. They
reduce wear and stress on cables and hoses, prevent entanglement, and improve operator safety.
Cable carriers may be arranged to accommodate horizontal, vertical, rotary and three-dimensional movements.

Cable carriers are used anywhere where there is moving automation involving the transferral of energy, data, liquids or gases.
Examples include machine tools, cranes, car washes, medical and laboratory equipment, automatic warehousing, forklifts, industrial robots, offshore oil rigs and stage technology.

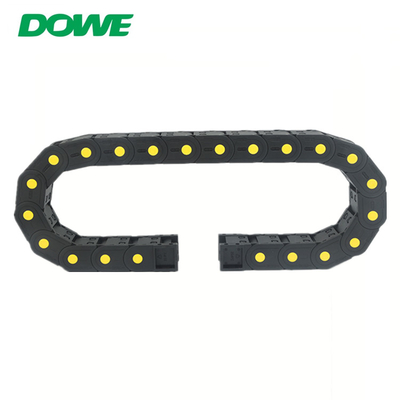

Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain 0

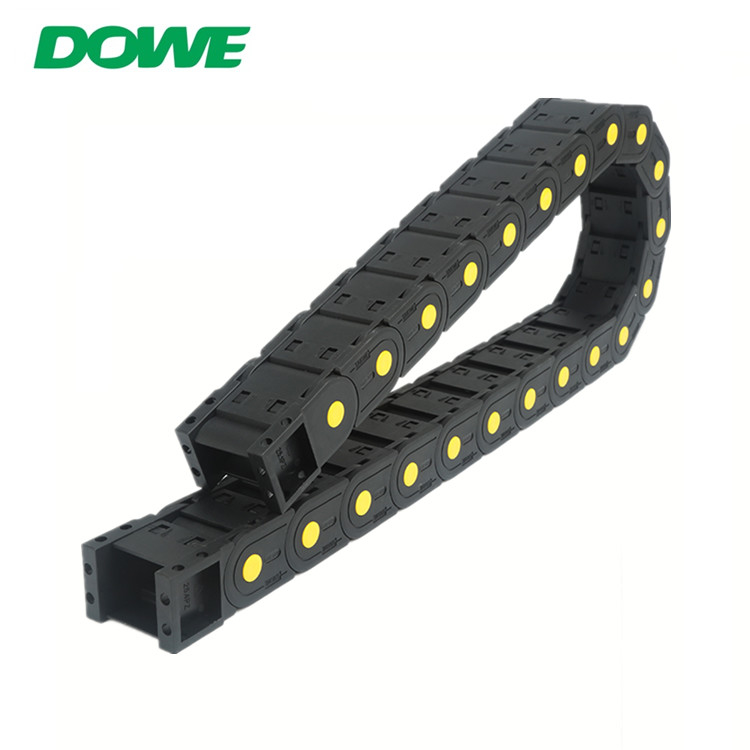

Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain 1

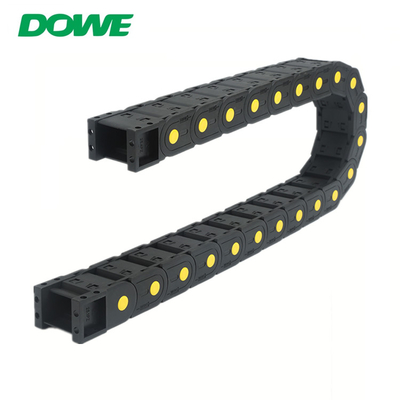

Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain 2
Specification
Brand Name
DOWE
Type
Drag Chain
Material
PA66
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Product Name
H25X38
inner diameter
25mm*38mm
outer diameter
40mm*56mm
Function
machine tool accessories
Bend radius
R55/R75/R100/R125/R150/R175
Type
Enclosed









H25 R55 R75 R100 R125 R150 R175



Inner H*D



25*25



25*38 25*50 25*57 25*60 25*77 25*103
Outer H*D



40*43



40*56 40*68 40*75 40*78 40*95 40*121

Packing & Delivery

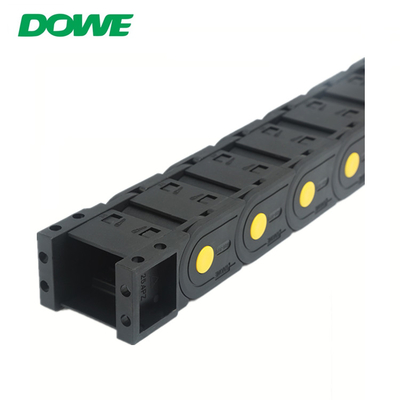

Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain 3
Tow Chain High Quality DOWE H25X38 Sprocket Popular Mini Drag Chain 4
1pcs/bag
