Product Details:
|
| Material: | PA66 | Inner Diameter: | 55mmx100mm |
|---|---|---|---|
| Outer Diameter: | 75mmx127mm | Bengding Radius: | R125/R150/R200/R250/R300/R400/R500 |
| Color: | Black | Application: | Industrial,Machine Tools Accessories,tractor Trailer Heavy Duty Weather Resistant Industrial,Moving Cable Protection,Electrical Equipment |
| Function: | Protected Cable,water Pipe,machine Tool Accessories,gas Pipe | ||
| High Light: | 55X100mm small cable drag chain,small cable drag chain conveyor design,small drag chain 55X100mm |
||

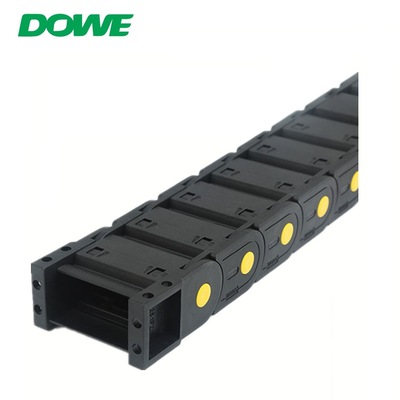

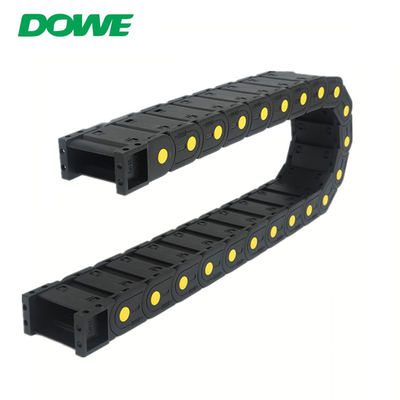

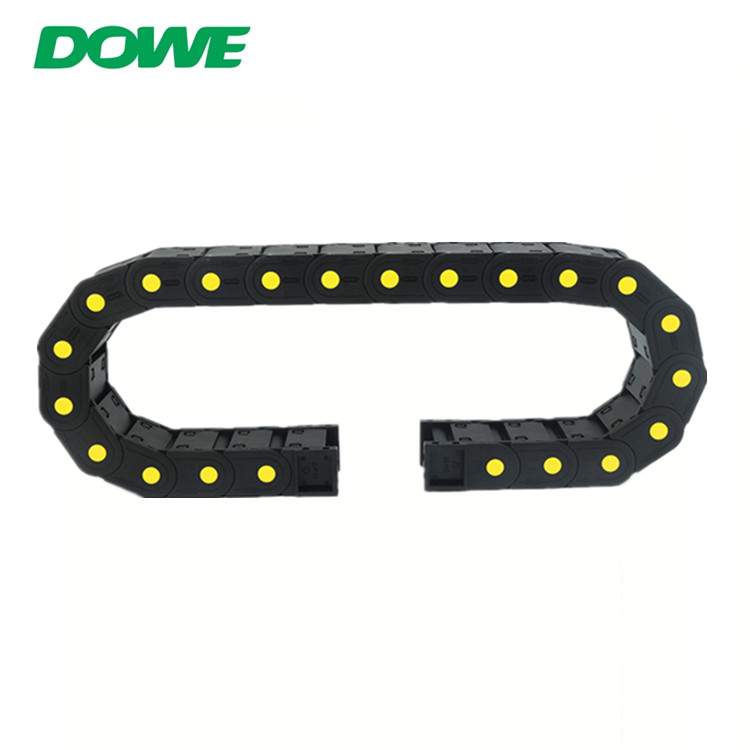

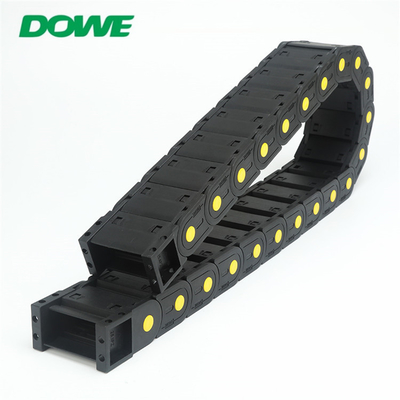

| Product Name | Plastic Tow Chain |
| Brand | DOWE |
| Model | H55 tow chain |
| Material | PA66 |
| Inner Diameter | 55mm*100mm |
| Outer Diameter | 75mm*127mm |
| Color | black |
| Sample | sample fee refund from 1st order |
| Bengding Radius | R125/R150/R200/R300/R400/R500 |
| Application | Machine Tool Accessories |
| Certification | CE,SGS |
| Operating Temperature | -40℃~125℃ |
| Place of Origin | China |
|
H55 R125 R150 R200 R250 R300 R400 R500
|
||||||||
| Inner H*D | 55*50 | 55*60 | 55*75 | 55*100 | 55*125 |
55*150
|
55*200 | 55*250 |
| Outer H*D | 75*77 | 75*87 | 75*102 | 75*127 | 75*152 |
75*177
|
75*227 | 75*277 |
Advantage:
1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment
