Product Details:
|
| Material: | PA66 | Inner Diameter: | 60mmx150mm |
|---|---|---|---|
| Outer Diameter: | 80mmx181mm | Bengding Radius: | R125/R150/R200/R250/R300/R400/R500 |
| Color: | Black | Application: | Industrial,Machine Tools Accessories,tractor Trailer Heavy Duty Weather Resistant Industrial,Moving Cable Protection,Electrical Equipment |
| Function: | Protected Cable,water Pipe,machine Tool Accessories,gas Pipe | ||
| Highlight: | flexible control Cable Drag Chain,Energy Chain For CNC Machine,Miniature Energy Drag Chain |
||

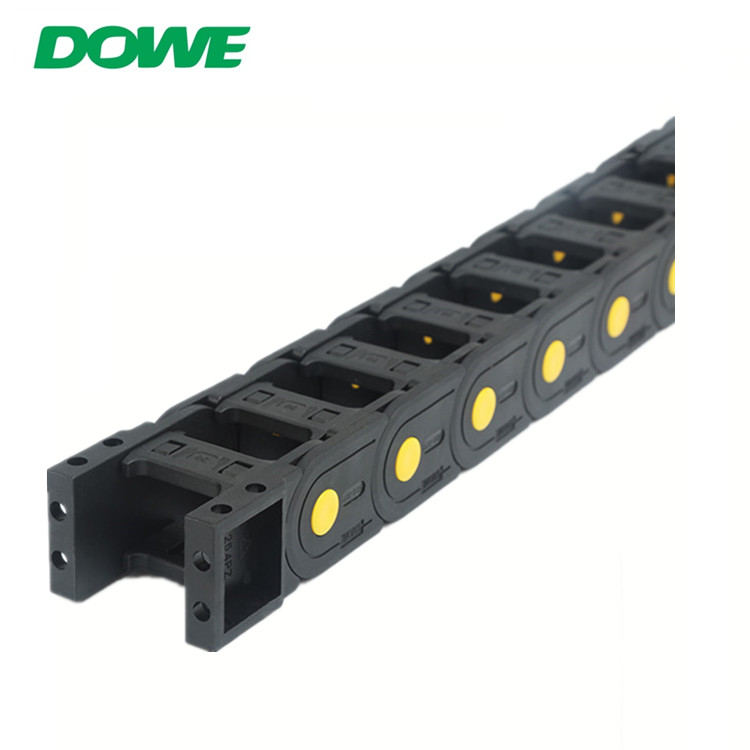

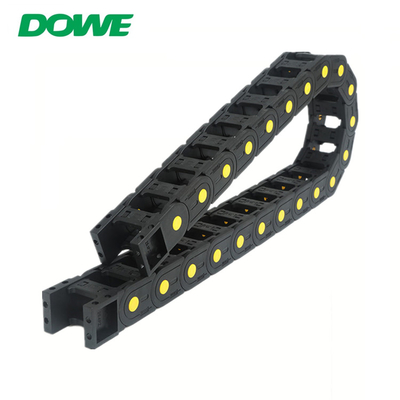

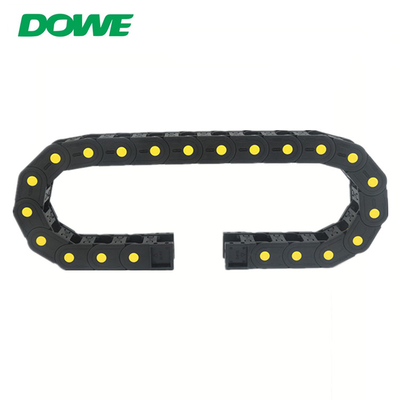

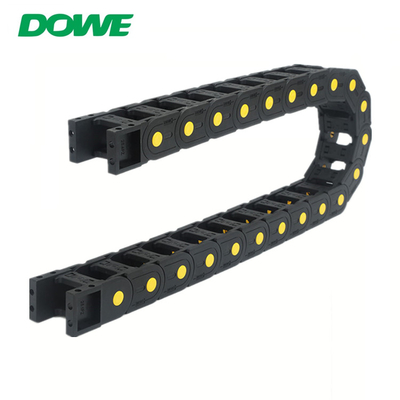

YUEQING DUWAI plastic cable drag chains are designed to meet any requirement for dynamic protection of cables and hoses. Our chains are able to withstand the most heavy-duty applications. A non-conclusive list of possible applications for our chains includes horizontal and vertical strokes, long travel distances even beyond 400 m, applications with protective covers, rotations on diameters ranging from less than 1 m up to more than 30 m, robotics.
| Product Name | Plastic Tow Chain |
| Brand | DOWE |
| Model | H60 tow chain |
| Material | PA66 |
| Inner Diameter | 60mm*150mm |
| Outer Diameter | 80mm*181mm |
| Color | black |
| Sample | sample fee refund from 1st order |
| Bengding Radius | R125/R150/R200/R300/R400/R500 |
| Application | Machine Tool Accessories |
| Certification | CE,SGS |
| Operating Temperature | -40℃~125℃ |
| Place of Origin | China |
H60 R125 R150 R200 R250 R300 R400 R500
| |||||||||
| Inner H*D | 60*50 | 60*60 | 60*75 | 60*100 | 60*125 | 60*150 | 60*175 | 60*200 |
60*250
|
| Outer H*D | 80*81 | 80*91 | 80*106 | 80*131 | 80*156 | 80*181 | 80*206 | 80*231 |
80*281
|
Advantage:
1.Separate mounting bracket on both sides
2.Anti-corrosion,Rub-resistance,Gliding application
3.For high speed and high acceleration environment
