10/15mm X 30mm Electrical Cable Carrier Drag Chain Plastic Mini Tow Line

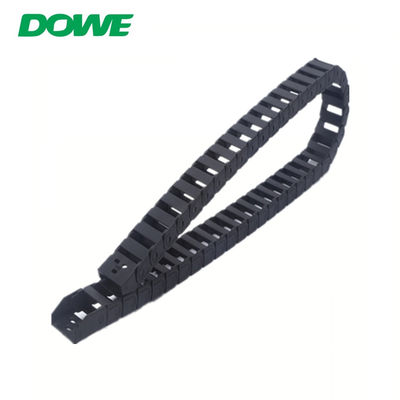

Large Image : 10/15mm X 30mm Electrical Cable Carrier Drag Chain Plastic Mini Tow Line

Product Details:

Place of Origin:	CHINA
Brand Name:	DOWE/DUWAI
Certification:	SGS，CE
Model Number:	T10X30

Payment & Shipping Terms:

Minimum Order Quantity:	1meter
Price:	4.1-4.92/METER
Packaging Details:	1pcs/bag
Payment Terms:	T/T
Supply Ability:	1000meter/week

Contact Now

10/15mm X 30mm Electrical Cable Carrier Drag Chain Plastic Mini Tow Line

Description

Material:	PA66	Inner Diameter:	10mmx30mm
Outer Diameter:	15mmx38mm	Bengding Radius:	R18/R28/R28
Color:	Black	Application:	Industrial,Machine Tools Accessories,tractor Trailer Heavy Duty Weather Resistant Industrial,Moving Cable Protection,Electrical Equipment
Function:	Protected Cable,water Pipe,machine Tool Accessories,gas Pipe
Highlight:	electrical cable drag chain , 15mm x 30mm drag chain , 15mm x 30mm cable carrier drag chain

Drag Chain T10X30 Factory Wholesale Ateel Drag Chain Cable Mini Tow Line

Product Description

PA66 Cable Drag Chain For CNC Machine

Cable carriers, also known as drag chains, energy chains, or cable chains depending on the manufacturer, are guides designed to

surround and guide flexible electrical cables and hydraulic or pneumatic hoses connected to moving automated machinery. They

reduce wear and stress on cables and hoses, prevent entanglement, and improve operator safety.

Cable carriers may be arranged to accommodate horizontal, vertical, rotary and three-dimensional movements.

Cable carriers are used anywhere where there is moving automation involving the transferral of energy, data, liquids or gases.

Examples include machine tools, cranes, car washes, medical and laboratory equipment, automatic warehousing, forklifts, industrial robots, offshore oil rigs and stage technology.

Specification

Brand Name	DOWE
Type	Drag Chain
Material	PA66
Applicable Industries	Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Product Name	T10X30
inner diameter	10mm*30mm
outer diameter	15mm*38mm
Function	machine tool accessories
Bend radius	R18/R28/R28
Type	Enciosed

10 R18 R28 R38
Inner H*D	10*10	10*15	10*20	10*30
Outer H*D	15*18	15*23	15*28	15*38

Packing & Delivery

1pcs/bag
